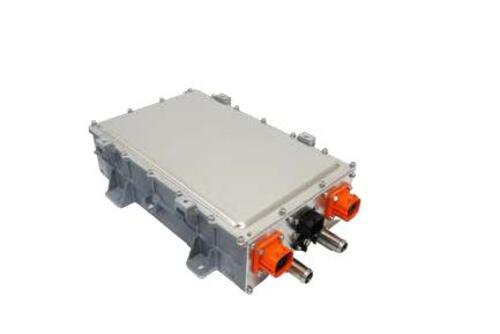

Combo 2.5KW DCDC Converter 11KW OBC Bidirectional


Model No:ATD2K5CB11KC-D14C750-W

Power:11KW OBC+2.5KW DC/DC

Input Voltage:

OBC:304-456VAC DC/DC:500-850VDC

Output Voltage:

OBC:500-850VDC DCDC:9~16VDC

Output Current:

OBC:16A DCDC:180A

Efficiency:≧94%

Code 2K5CB11KC-D14C750-W






Download : Model No_ATD2K5CB11KC-D14C750-W Specification


Specification

Description Technical Specification Remark
OBC Charging Mode
Rated Output Power 11KW
Input Voltage Range  304~456VAC(3 phase 4 wire) 1 phase input: 176~264VAC
Input Current 32A Max
Power Factor ≥0.99(@220VAC full load)
Output Voltage Range 500~850VDC Adjustable
Max Output Current 16A
Efficiency ≥94% Rated voltage
Voltage Accuracy ±1%
Current Accuracy ±1%
Inverter Mode
Input Voltage Range 500~850VDC
Output Voltage 220Vac(±5%, 1 phase)
Power 6KVA(1 phase)
Efficiency ≥94%
Output Harmonic Distortion (THDv) <3%(linear load)
Dynamic Response   60ms(linear load)
Leakage current protection threshold  ≤30mA
DC/DC Mode
Input Voltage Range 500~850VDC
Input Current Range  <10A
Efficiency ≥94%
Output Voltage Range 9~16VDC
Rated Output Voltage 14VDC
Rated Output Current 180A
Rated Power  2.5KW
Peak Power   3KW
Voltage Ripple 300mV Max
Others
Operating Temperature -40~85℃ Coolant inlet temperature
Low Voltage Wakeup 12VDC&200mA max (Wakeup signal) Wakeup BMS/VCU
Wakeup Method CAN, AC, HVDC, PP/CP, EN(hardwire) Support reservation charging
CAN Communication CAN-BUS
Quiescent Current ≤1mA Battery current will be consumed in sleep/standby mode
Protection Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit prote-ction, communication fault protection
EMC GB/T18387-2008, EN 55022

Structural Parameters
