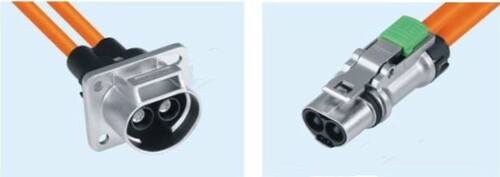

HVC 2POS 3.6mm Connector
Model No.:AR-NI1-1-S036-CXX/AR-NI1-1-H036-CXX
Rated voltage:800V DC
Rated current:35A(Max)
Temperature range : -40℃ to +125℃
Sealing protection : IP67, IP6K9K
Code AR-NI1-1-SH036-CXX
Download: HVC 2POS 3.6mm Connector(AR-NI1-1-S036-CXX & AR-NI1-1-H036-CXX) Specificaiton
Product application
● PDU, Air conditioning, Defrosting, Electric heting, DCDC
Description
● Rated Voltage : 800V AC/DC
● Rated Current : From 16A to 35A
● Insulation resistance : ≥500MΩ
● Withstand voltage : 3500VAC
● Operating Temperature : -40℃~125℃
● Cable range : 2.5mm-6mm2 wire
● Shielding : 360° shielding
● Mating Cycles : >100
● IP Class : IP67, IP6K9K (Mated)
● Number of Positions : 2 POS
● HVIL
Performance
● 3.6mm pin
● Excellent Electrical Insulation
● Secondary buckle
● Various Wire Diameter Application
● Muti Misplug-proof and key position design
Part Number Information
| Plug | Pos Number |
Key | HVIL | Color | Wire Spec | ||||||
| NI1-1-S036- | 2 | A | Y/N | B | C03 (2.5mm2) | ||||||
| Y | C04 (4mm2) | ||||||||||
| U | C05 (6mm2) | ||||||||||
| V | / | ||||||||||
| W | / | ||||||||||
| Receptacle | Pos Number |
Key | HVIL | Color | Wire Spec | ||||||
| NI1-1-H036- | 2 | A | Y/N | B | C03 (2.5mm2) | ||||||
| Y | C04 (4mm2) | ||||||||||
| U | C05 (6mm2) | ||||||||||
| V | / | ||||||||||
| W | / | ||||||||||
