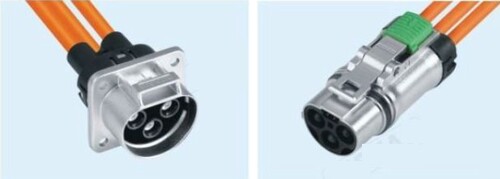

HVC 3POS 3.6mm Connector


Model No.:AR-NI1-1-S036-CXX/AR-NI1-1-H036-CXX

Rated voltage:800V DC

Rated current:35A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Code AR-NI1-1-S036-CXX





Download: HVC 3POS 3.6mm Connector(AR-NI1-1-S036-CXX & AR-NI1-1-H036-CXX) Specificaiton

Product application
● PDU, Air conditioning, Defrosting, Electric heting, DCDC

Description
● Rated Voltage : 800V AC/DC
● Rated Current : From 16A to 35A
● Insulation resistance : ≥500MΩ
● Withstand voltage : 3500VAC
● Operating Temperature : -40℃~125℃
● Cable range : 2.5mm-6mm2 wire
● Shielding : 360° shielding
● Mating Cycles : >100
● IP Class : IP67, IP6K9K (Mated)
● Number of Positions : 3 POS
● HVIL



Performance
● 3.6mm pin
● Excellent Electrical Insulation
● Secondary buckle
● Various Wire Diameter Application
● Muti Misplug-proof and key position design


Part Number Information
Plug Pos
Number
Key HVIL Color Wire Spec
NI1-1-S036- 3 A Y/N B C03 (2.5mm2)
Y C04 (4mm2)
U C05 (6mm2)
V /
W /

Receptacle Pos
Number
Key HVIL Color Wire Spec
NI1-1-H036- 3 A Y/N B C03 (2.5mm2)
Y C04 (4mm2)
U C05 (6mm2)
V /
W /
