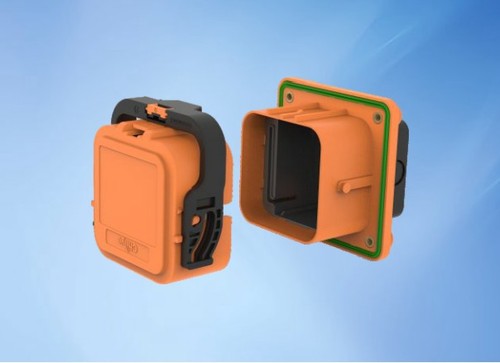

Manual Service Disconnect-MSD700
Rated voltage : 800V
Rated current : up to 630A
Temperature range : -40℃ to +125℃
Plugging Cycle : More than 500 times
Screw : M8
Sealing protection : IP67, IP6K9K
Electrical protection : IP2XB
Code AR-MSD700
MSD700 Datasheet

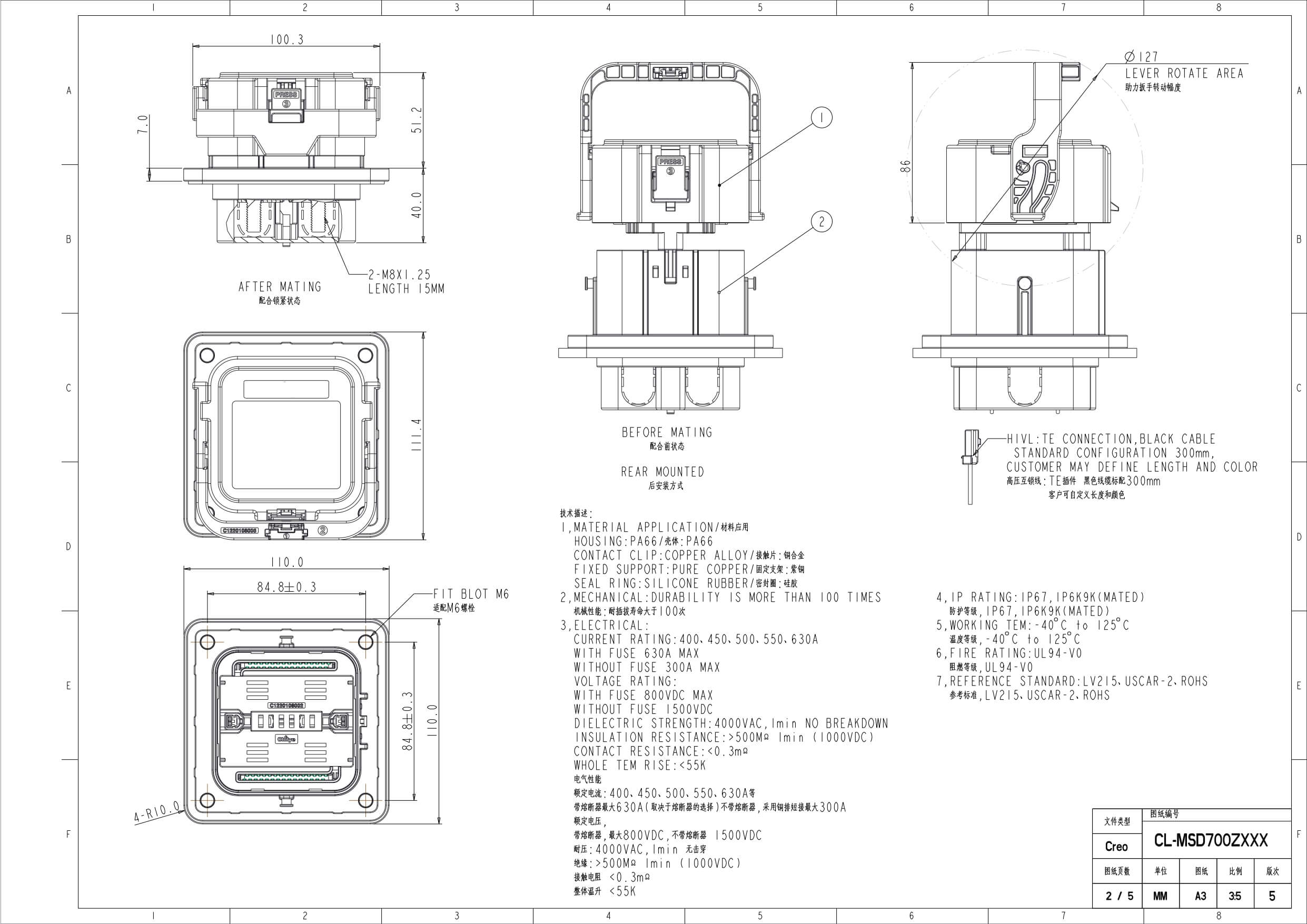

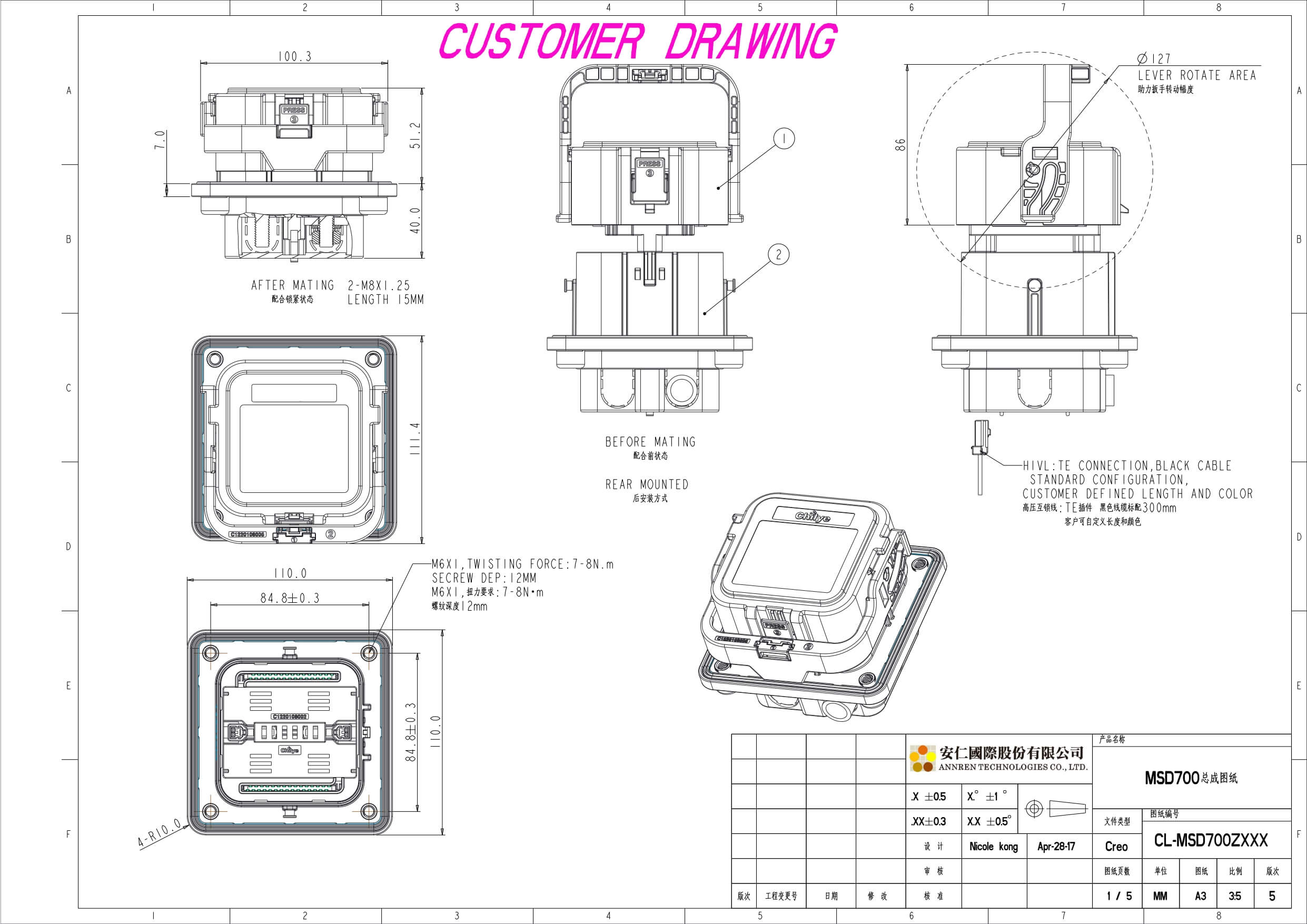

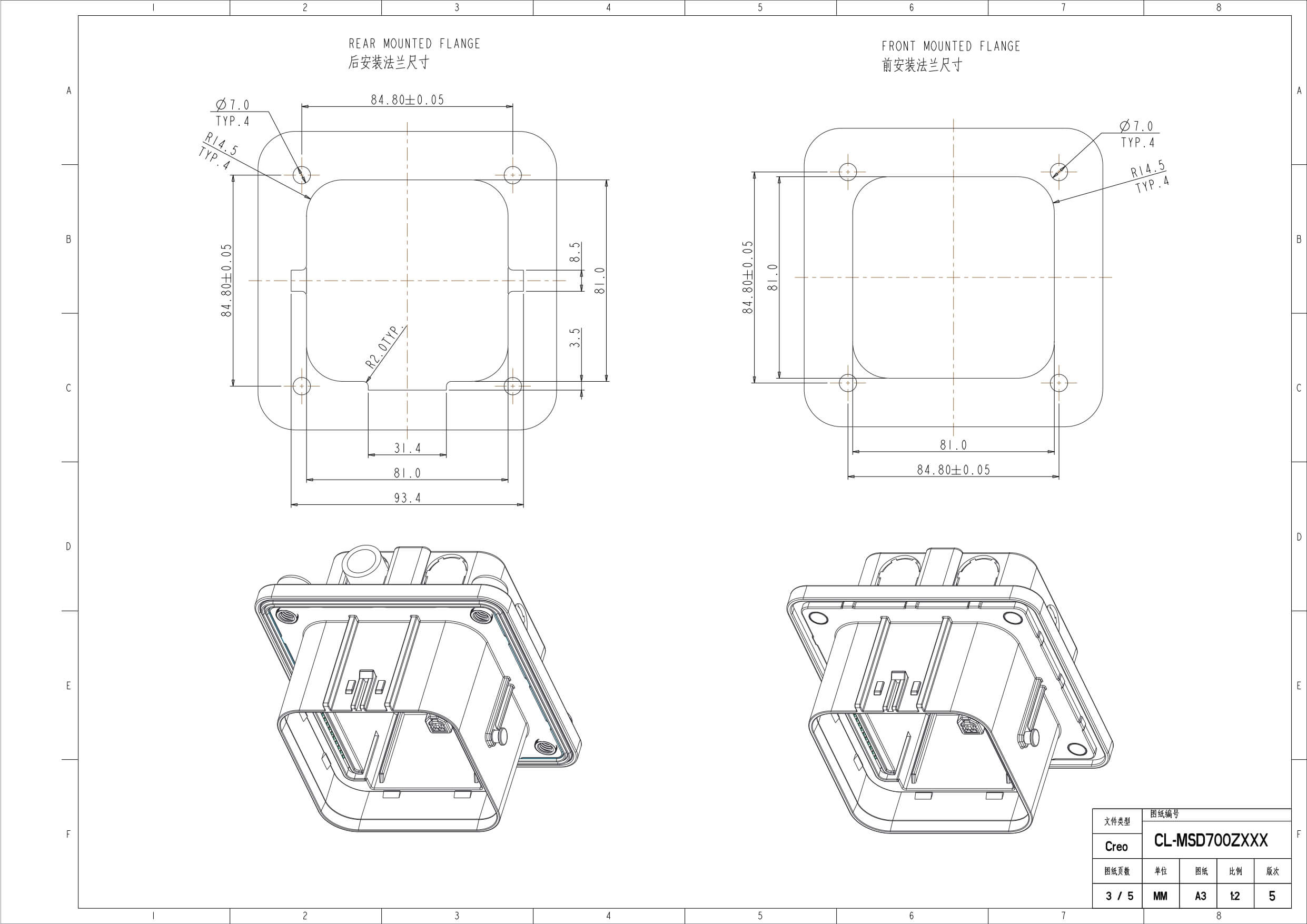

MSD700 總成圖紙
Application :
● Power battery pack
Description :
● Two stage unlocking design
● Fuse with various ratings available
● Finger touching safe
● Light weight, compact size
● 2 HVIL available
● Wire range: Power circuit : 25mm2 -70mm2
● HVIL circuit : 0.5mm2
Performance :
With FUSE
● Rated voltage : 800V
● Rated current : up to 630A
NO FUSE
● Rated voltage : 1500V
● Temperature range : -40℃ to +125℃
● Plugging Cycle : More than 500 times
● Screw : M8
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB

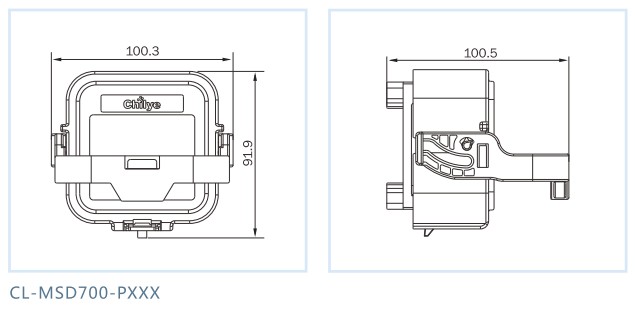

Part Number Information
| Error proof keys | Fuse Current | Plug | Head assembly | Rear assembly |
| 1 | Short connector | CL-MSD700-P000 | CL-MSD700-SF |

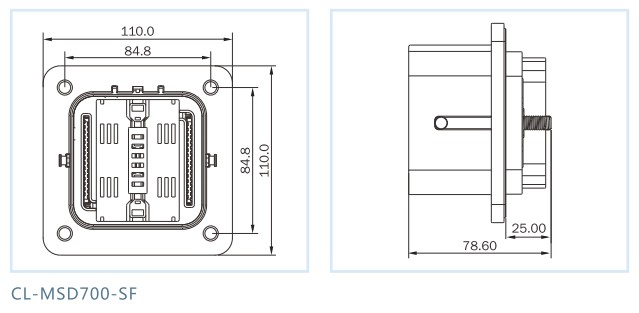

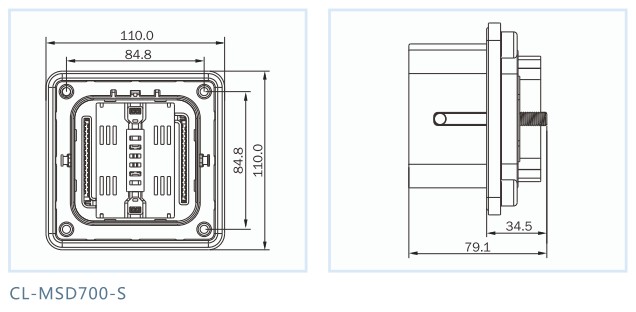

CL-MSD700-S |
| 2 | 160 | CL-MSD700-P160 | ||
| 3 | 200 | CL-MSD700-P200 | ||
| 4 | 250 | CL-MSD700-P250 | ||
| 5 | 315 | CL-MSD700-P315 | ||
| 6 | 350 | CL-MSD700-P350 | ||
| 7 | 400 | CL-MSD700-P400 | ||
| 8 | 500 | CL-MSD700-P500 | ||
| 9 | 550 | CL-MSD700-P550 | ||
| 10 | 630 | CL-MSD700-P630 |
SELECTION TABLE BUSSMANN FUSE
| 1 PULG | 2 RECEPTACLE | PLUG+RECEPTACLE | RATING VOLTAGE | CURRENT | FUSE FIRM | REMARK | ||
| PLUG | REAR MOUNTED | FRONT MOUNTED | REAR MOUNTED | FRONT MOUNTED | ||||
| CL-MSD700P000 | CL-MSD700S |
CL-MSD700SF |
CL-MSD700Z000 | CL-MSD700Z000F | 1500 DC | NO FUSE | Chily | 銅牌短接 |
| CL-MSD700P080 | CL-MSD700Z080 | CL-MSD700Z080F | 800 DC |
80 | Bussmann |
|||
| CL-MSD700P100 | CL-MSD700Z100 | CL-MSD700Z100F | 100 | |||||
| CL-MSD700P125 | CL-MSD700Z125 | CL-MSD700Z125F | 125 | |||||
| CL-MSD700P160 | CL-MSD700Z160 | CL-MSD700Z160F | 160 | |||||
| CL-MSD700P200 | CL-MSD700Z200 | CL-MSD700Z200F | 200 | |||||
| CL-MSD700P250 | CL-MSD700Z250 | CL-MSD700Z250F | 250 | |||||
| CL-MSD700P315 | CL-MSD700Z315 | CL-MSD700Z315F | 315 | |||||
| CL-MSD700P350 | CL-MSD700Z350 | CL-MSD700Z350F | 350 | |||||
| CL-MSD700P400 | CL-MSD700Z400 | CL-MSD700Z400F | 400 | |||||
| CL-MSD700P450 | CL-MSD700Z450 | CL-MSD700Z450F | 450 | |||||
| CL-MSD700P500 | CL-MSD700Z500 | CL-MSD700Z500F | 500 | |||||
| CL-MSD700P550 | CL-MSD700Z550 | CL-MSD700Z550F | 550 | |||||
| CL-MSD700P630 | CL-MSD700Z630 | CL-MSD700Z630F | 630 | |||||
| CL-MSD700P080-L | CL-MSD700Z080-L | CL-MSD700Z080F-L | 500 DC |
80 | ||||
| CL-MSD700P100-L | CL-MSD700Z100-L | CL-MSD700Z100F-L | 100 | |||||
| CL-MSD700P125-L | CL-MSD700Z125-L | CL-MSD700Z125F-L | 125 | |||||
| CL-MSD700P160-L | CL-MSD700Z160-L | CL-MSD700Z160F-L | 160 | |||||
| CL-MSD700P200-L | CL-MSD700Z200-L | CL-MSD700Z200F-L | 200 | |||||
| CL-MSD700P250-L | CL-MSD700Z250-L | CL-MSD700Z250F-L | 250 | |||||
| CL-MSD700P315-L | CL-MSD700Z315-L | CL-MSD700Z315F-L | 315 | |||||
| CL-MSD700P350-L | CL-MSD700Z350-L | CL-MSD700Z350F-L | 350 | |||||
| CL-MSD700P400-L | CL-MSD700Z400-L | CL-MSD700Z400F-L | 400 | |||||
| CL-MSD700P450-L | CL-MSD700Z450-L | CL-MSD700Z450F-L | 450 | |||||
| CL-MSD700P500-L | CL-MSD700Z500-L | CL-MSD700Z500F-L | 500 | |||||
| CL-MSD700P550-L | CL-MSD700Z550-L | CL-MSD700Z550F-L | 550 | |||||
| CL-MSD700P630-L | CL-MSD700Z630-L | CL-MSD700Z630F-L | 630 | |||||
SELECTION TABLE SINO FUSE
| 1 PLUG | 2 RECEPTACLE | PLUG+RECEPTACLE | RATING VOLTAGE | CURRENT | FUSE FIRM | REMARK | ||
| PLUG | REAR MOUNTED | FRONT MOUNTED | REAR MOUNTED | FRONT MOUNTED | ||||
| CL-MSD700P125Z | CL-MSD700S |
CL-MSD700SF |
CL-MSD700Z125Z | CL-MSD700Z125ZF | 750 DC |
125 | SINO FUSE |
|
| CL-MSD700P160Z | CL-MSD700Z160Z | CL-MSD700Z160ZF | 160 | |||||
| CL-MSD700P200Z | CL-MSD700Z200Z | CL-MSD700Z200ZF | 200 | |||||
| CL-MSD700P250Z | CL-MSD700Z250Z | CL-MSD700Z250ZF | 250 | |||||
| CL-MSD700P315Z | CL-MSD700Z315Z | CL-MSD700Z315ZF | 315 | |||||
| CL-MSD700P350Z | CL-MSD700Z350Z | CL-MSD700Z350ZF | 350 | |||||
| CL-MSD700P400Z | CL-MSD700Z400Z | CL-MSD700Z400ZF | 400 | |||||
| CL-MSD700P450Z | CL-MSD700Z450Z | CL-MSD700Z450ZF | 450 | |||||
| CL-MSD700P500Z | CL-MSD700Z500Z | CL-MSD700Z500ZF | 500 | |||||
| CL-MSD700P550Z | CL-MSD700Z550Z | CL-MSD700Z550ZF | 550 | |||||
| CL-MSD700P630Z | CL-MSD700Z630Z | CL-MSD700Z630ZF | 630 | |||||
| CL-MSD700P125Z-L | CL-MSD700Z125Z-L | CL-MSD700Z125ZF-L | 500 DC |
125 | ||||
| CL-MSD700P200Z-L | CL-MSD700Z200Z-L | CL-MSD700Z200ZF-L | 200 | |||||
| CL-MSD700P250Z-L | CL-MSD700Z250Z-L | CL-MSD700Z250ZF-L | 250 | |||||
| CL-MSD700P315Z-L | CL-MSD700Z315Z-L | CL-MSD700Z315ZF-L | 315 | |||||
| CL-MSD700P350Z-L | CL-MSD700Z350Z-L | CL-MSD700Z350ZF-L | 350 | |||||
| CL-MSD700P400Z-L | CL-MSD700Z400Z-L | CL-MSD700Z400ZF-L | 400 | |||||
| CL-MSD700P450Z-L | CL-MSD700Z450Z-L | CL-MSD700Z450ZF-L | 450 | |||||
| CL-MSD700P500Z-L | CL-MSD700Z500Z-L | CL-MSD700Z500ZF-L | 500 | |||||
| CL-MSD700P550Z-L | CL-MSD700Z550Z-L | CL-MSD700Z550ZF-L | 550 | |||||
| CL-MSD700P630Z-L | CL-MSD700Z630Z-L | CL-MSD700Z630ZF-L | 630 | |||||
