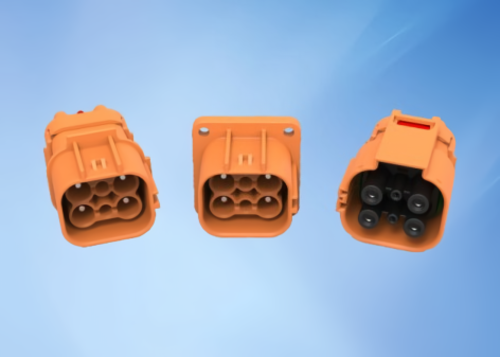

HVC 480 6POS Connector

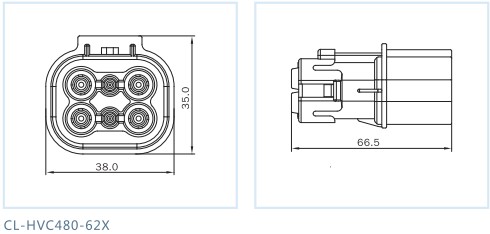

Model No.:AR-HVC480-61X/AR-HVC480-62X/AR-HVC480-63X

Rated voltage:600V DC

Rated current:40A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

Code AR-HVC480-6XX





Download: HVC 480 6POS CONNECTOR(AR-HVC480-61X & AR-HVC480-62X & AR-HVC480-63X) Specificaiton






Reference Standard : USCAR-2, USCAR-37


Product application
● High-voltage unshielded system for on-board charger applications

Description
● Plastic Sealed connection system
● System installation surface and flange seal
● Capability for four power circuits and two signal circuits
● Two-stage locking sysytem for electrical protection
● Finger touching safe
● Three stage error-proof design
● Shielding range : 360° shielded from the line to the connector
● Cable range : 2.5mm2 to 6mm2 power circuit
● 0.5mm2 to 1mm2 signal circuit
● Different poles available, with HVIL (2+2), (3+2), (4+2)​​​​​​​


Performance
● Current capacity : 40A continuous at 85℃
● Voltage : 600V
● Temperature range : -40℃ to +125℃
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB


Part Number Information

Keys Receptacle Straight Plug

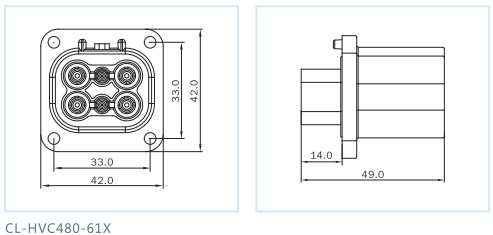

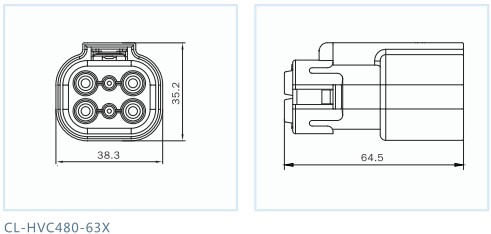

A CL-HVC480-61A CL-HVC480-63A
A CL-HVC480-51A CL-HVC480-53A
A CL-HVC480-41A CL-HVC480-43A
