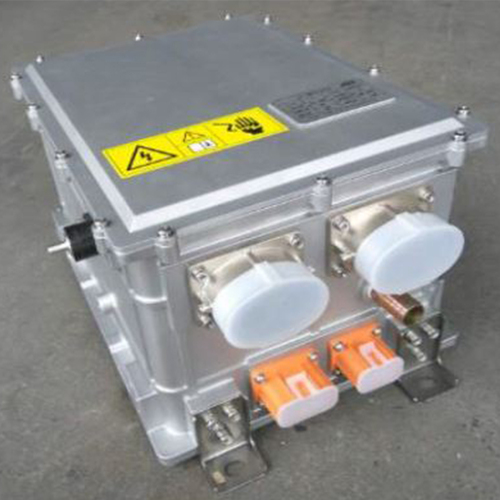

COMBO_6.6KW OBC+2.5KW DCDC+PDU 3 in 1 Liquid Cooling
Model No.:AR-2K5C6K6-D14C540-HW-AR01
Power:OBC:6.6KW DCDC:2.5KW
Input Voltage:OBC:90~264V DCDC:400~750V
Output Voltage:OBC:500-750V DCDC:14VDC
Output Current:OBC:20A DCDC:175A
Efficiency:OBC:95% DCDC:95%
Code AR-2K5C6K6-D14C540
Download: 6.6KW OBC+2.5KW DCDC+PDU 3 in 1 Liquid Cooling Specificaiton
Features
● Module Low Voltage (VDC): 12
● Module Low Current (A): 200Ma/2A
● Size (mm): 430X326X218
● Cooling System: Water
● IP Rating: IP67
● Scope: Various new energy vehicles
● Hardware: Small size, light weight and stable performance
● Firmware: Full digital software design, redundant protection function design
DC/DC Converter
● Output power: 2.5KW
● Input voltage: 400~750VDC
● Output voltage: 14VDC
● Communication method: CAN
AC/DC Converter (OBC)
● Output power: 6.6KW
● Input voltage: 90~264VAC
● Output range: 500~750VDC
● Communication method: CAN
The main technical
OBC、DCDC technical Parameters
| Item | Technical specifications | Remark | ||
| Output Power | 2.5KW | 6.6KW | ||
| Input voltage range | 400-750VDC | 90~264VAC | ||
| Output voltage range | 14VDC | 500-750VDC | ||
| Output voltage accuracy | ±0.2VDC | ±1% | ||
| Output current | 175A | 20A(max) | ||
| Current accuracy | / | ±3% | Half load or more | |
| Effectiveness | ≥95% | ≥95% | Rated voltage full load | |
| Low voltage output | / | 12VDC/1Amax | ||
| Auxiliary power VCC | 6-18VDC | / | ||
| Output voltage ripple | ≤500mVPK-PK | / | ||
| Other protection features | Input over-voltage, output over-voltage, output over-current and short-circuit protection (extension and snoring), over-temperature self-recovery | Input over-voltage, output over-voltage, over-temperature protection, over-current protection, output short-circuit protection, reverse battery protection, communication fault protection, internal fault protection | ||
| Dielectric strength | Input to output | 2500VDC/1min 1mA max | 2000VDC /1min 10mA Max | |
| Input to the outer casing | 2500VDC/1min 1mA max | 1500VAC /1min 10mA Max | ||
| Input to output | / | 3000VAC /1min 10mA Max | ||
| Insulation resistance | Input to output | ≥20MΩ | ≥20MΩ； | |
| Input to the outer casing | ≥20MΩ | ≥20MΩ； | ||
| Electromagnetic compatibility | Radiation emission | GB/T 18655-2010 Class 3 | GB/T18387 2008 EN55022 CLassB | |
| Conducted emission | GB/T 18655-2010 Class 3 | |||
| Static immunity | GB/T 19951-2005 | |||
| Radiation immunity | GB/T 18655-2010 Class 3 | |||
| High current injection | GB/T 17619-1998 | |||
| Fast burst immunity | GB/T 17626.4-2008 1KV | |||
High voltage distribution parameters

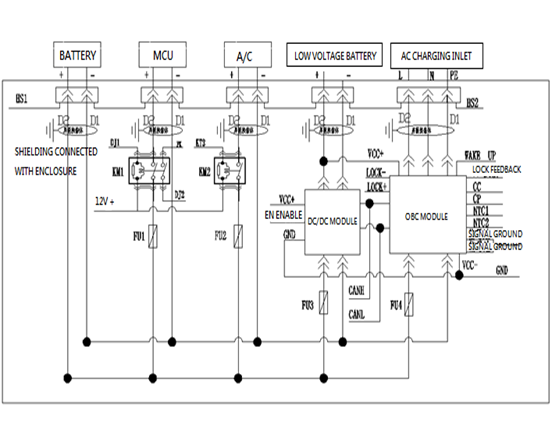

High-voltage power distribution electrical schematic (can be customized)
Fuse parameters (customized by customer)
| Name | Specification requirements | Manufacturer model |
| Air conditioner fuse | 32A 500V | EV1845-32A-M6 |
| DCDC fuse | 25A 500V | EV1845-25A-M6 |
| OBC fuse | 32A 500V | EV1845-32A-M6 |
Contactor parameters (can be customized)
| Name | Specification requirements |
| Electronically controlled contactor | 250A 500V |
| Air conditioner contactor | 20A 500V |

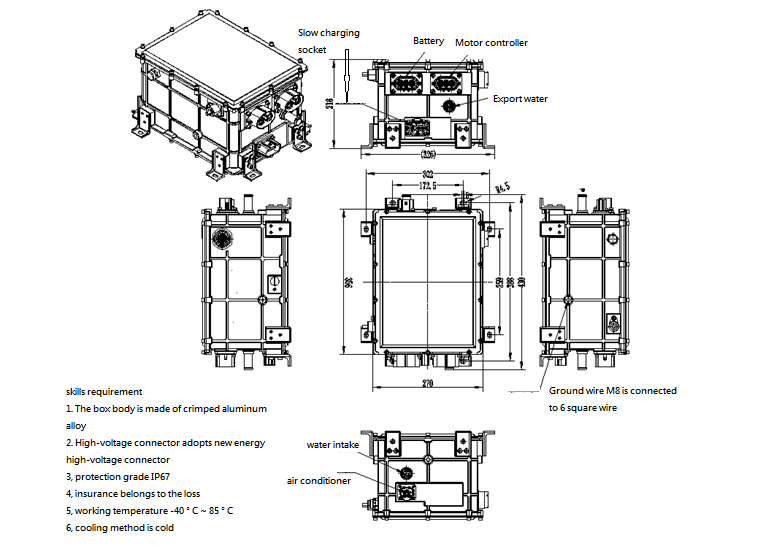

Structural parameters
Structural parameters
.png)
Electrical Interface
High pressure interface (customized by customer)
| Item | Socket model | Plugin definition | Plug model | factory | Quantity | Plug note | ||
| 1 | YGC1127-EV-S(2+2)RD | Positive and negative battery | YGC1127-EV-S(2+2)PF | Yonggui | 1 | B positive A negative 35 square shielded line | ||
| 2 | YGC1127-EV-S(2+2)RC | Motor controller positive and negative | YGC1127-EV-S(2+2)PE | Yonggui | 1 | A positive B minus 35 square shielded wire | ||
| 3 | YGC939-EV-P2RC | Air conditioner | YGC939-EV-S2PC | Yonggui | 1 | positive 2 negative connected 2.5 square shielded wire | ||
| 4 | YGC989-EV-P3RD | Slow charging three-phase input | YGC989-EV-S3PH | Yonggui | 1 |
|
||
| 5 | C-GH02-P250-1NNB-T01 | 12V output is positive | Guoweitong | 1 |
Interface definition
| Socket definition | Pin number | Interface definition | Description |
| Battery | B | Power battery is positive | |
| A | Power battery negative | ||
| Motor Controller | A | Motor controller is positive | |
| B | Motor controller negative | ||
| Air conditioning | 1 | positive | |
| 2 | negative | ||
| Slow charging interface | 1 | L | |
| 2 | N | ||
| 3 | PE | ||
| DCDC output interface | 1 | Low voltage 12 output is positive | |
| Control signal terminal | A | 12V+ | |
| B | GND | ||
| C | Fast charge contactor feedback | ||
| D | Fast charge contactor coil negative | ||
| E | PTC contactor coil negative | ||
| F | DCDC EN enable | ||
| G | WAKE UP | ||
| H | CANH | ||
| L | CANL | ||
| M | CC | ||
| N | CP | ||
| P | High voltage interlock input | ||
| R | High voltage interlock output | ||
| K | AC charging electronic lock power supply positive | ||
| T | AC charging electronic lock feedback | ||
| S | AC charging socket temperature detection 2 | ||
| J | |||
| U | AC charging electronic lock power supply negative | ||
| W | AC charging socket temperature detection 1 | ||
| V | Car charging signal ground |
|
