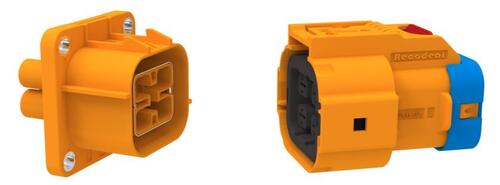

4POS High Voltage Plastic Shell Connector With Shield(REL2)
Model No.; T4PAH-6-B / Z4PAH-6-B
Current rating: 16A=2.5mm
25A=4mm
40A=6mm
Voltage rating: 1000V DC
Shield: Option
HVIL: Option
Temperature range: -40° ~+140°
Code REL2
Download:4POS High Voltage Plastic Shell Connector With Shield(REL2)
Describe
• 4POS
• Plastic shell
• With secondary locking, delayed unlocking
• Anti-mis-touch design(IPXXB)
• High protection degree
• 4 Anti-mistake key positions
• Cable Section: 2.5mm2 ~ 6mm2
• Integrated mask interlocking function
• For battery heating, compressor, PTC, OBC, PDU equipment
Ordering Information
