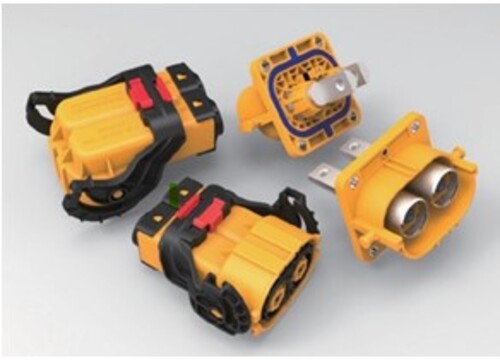

Multi POS High Current Plastic Shell Connector with Shield(REG1)


Voltage rating: 1000V DC

Withstand voltage: 5000V AC

Insulation resistance: 5000MΩ/1000V DC

Shielding: optional

HVIL: YES(HVIL is normal, Non-HVIL is optional)

代碼 HV_CONNECTOR_REG1




Download:Multi POS High Current Plastic Shell Connector with Shield(REG1)

Features/Application
•   REG1 series connectors provide stable high voltage power transmission among EV/HEV systems.

•   Outer shell is molded in thermoplastics with excellent flame-retartant and high temperature resistant ability. This REG1 series has many options (straight and right angle), and comparing same sized metal connectors, it has lighter weight, small size and easy installation.

•   Locking handle and secondary locking structure. This connector requires smaller operation space, especially for those application environment with limited space.

•   Current rating range 125A~250A, contact specification ø9.1mm, supporting cable from 25mm2 ~ 70mm2 (section) to meet various electrical performance. Multi anti-misplug key position avoiding mistakes when same series connectors are applied on same devices.


Environmental Property


Working temperature: -40° ~+125°

Relative humidity: 95%(40°C)

Salt spray: 500h(NaCI 5%)

Sealing: IP68B in mated condition, plug and jack meet IPXXB separately

Flame retardant Grade: UL94-V0



Mechanical Property

Mating cycle: ≥100 times

Vibration: 10~80 Hz, amplitude 0.75

 81~500Hz, 20g

 500~2000Hz, 18g



Material

Shell: thermoplastic flame-retardant

Contact: copper alloy silver plated

Seal: rubber or elastomer

Technical Specification

Electrical Property
Current rating:

Contact

Cable Range

Current Rating

Cable Type

Shielding Line Diameter

Non-Shielding Line Diameter

ø9.1mm

25mm2

120A

Shield or Non-Shield is optional

Ø12.2±0.3

Ø11.1±0.3

35mm2

180A

Ø14.5±0.3

Ø12.2±0.3

50mm2

220A

Ø15.9±0.3

Ø14.5±0.3

70mm2

250A

Ø18.5±0.3

Ø15.9±0.3


Ordering Information
