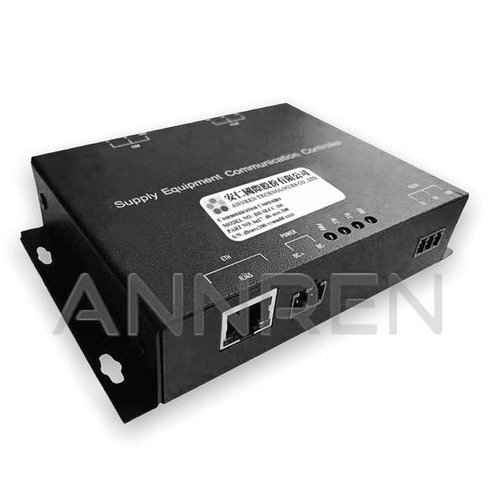

Supply Equipment Communication Controller (SECC)


Model No.: DB-SECC-200

HomePlug Green PHY™ compatible QCA7000 Chip for control pilot communication

Supported Standards: ISO 15118 / DIN 70121 / GBT 27930

IEC61851-1

Ethernet (IEEE 802.3)

CAN2.0B

代碼 DB-SECC-200





Download:Supply Equipment Communication Controller(SECC)


Features
Operation Temperature: 20⁰C …. +55 ⁰C
Dimensions (L*W*H): 127 * 86.8 * 25mm
Protection Class: Housing IP40
Assembly: DIN-Rails (EN 50022) or Wall-Mounted


Supported Standards

1. HomePlug Green PHY™ compatible QCA7000 Chip for control pilot communication
2. Supported Standards: ISO 15118 / DIN 70121 / GBT 27930
3. IEC61851-1
4. Ethernet (IEEE 802.3)
5. CAN2.0B
6. Backend Connectivity: Fast Ethernet 100 Mbit/s


Certifications
1. EN 61000-6-2
2. EN 61000-6-4
3. EN 62368-1:2019
4. RoHS V2.0


Wiring with External DC Charge Controller

Note:
・ The IEC 61851-1 Functionality is enabled in DB-SECC-200.
・ The CAN interface is the main communication way between DB-SECC-200 and Charger Board. The communication protocol is now supported as: Enhanced GB/T 27930-2015.
