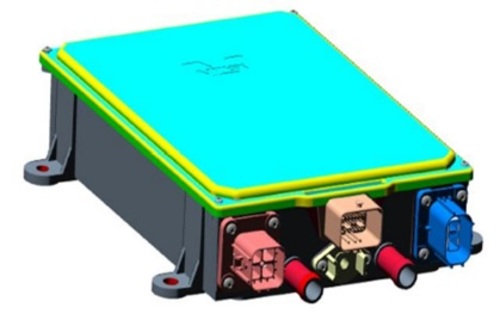

COMBO_2 in 1 2.5kW DCDC+6.6 kW OBC IEC charging Standard


Model No.: AR2K5D6K6B-270S400L-I

代碼 AR2K5D6K6B-270S400L





Download : 2 in 1 2.5kW DCDC+6.6 kW OBC IEC charging Standard


Electrical characteristics

1. OBC Charging mode

Specifications

Parameters

AC input

Input voltage range

85265Vac

Rated input voltage

220Vac

Input frequency range

45-65Hz

Input Current

32A max

Power Factor

0.98@ rated input, output half load

High voltage output

Output voltage range

270V~465Vdc

Rated output voltage

400Vdc

Output current

22 A

Output voltage accuracy

≤±1%

Output current accuracy

≤±3%@>10A;≤±0.3A @<10A

Output voltage ripple coefficient

≤±5%

Output Power

6.6 kW max

Efficiency

92%@ Rated input and output



2. DC/DC mode:

Specifications

Parameters

High voltage input

Input voltage range

270~465Vdc

Rated input voltage

400Vdc

Input current

12A

Low voltage output

Output voltage range

9~16Vdc

Output rated voltage

14Vdc

Output current

180A continuous

Output Power

2.5KW continuous

Under Charging / inverting state

DCDC output power

2KW max

Efficiency

92%@ Rated input and output

Output voltage accuracy

≤±1%

Output voltage ripple coefficient

≤500mVpp@20MHz

Output voltage overshoot

≤5% Vout


3. Low voltage output

Low-voltage input

Input voltage range

916Vdc (Normal work)

6~18Vdc (Communication is normal)

Quiescent Current

2mA (all system)

Communication method

CAN2.0

(The product hardware shares one CAN, no terminal 120Ω resistor)

HVIL function

The high-voltage connector interlock signal is given by the low-voltage signal connector, and its status is detected by the vehicle

Charging wake-up method

Hardwire wakeup, CAN wakeup

DCDC wake-up method

Hardwire wakeup, CAN wakeup

UDS function

Supported

Boot loader function

Supported

AUTOSAR

Support AUTOSAR 4.3.1 network management

If necessary, the development cycle is 6 weeks
