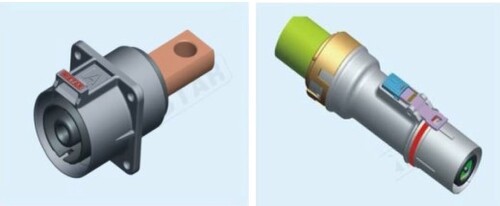

HVC 180° 1POS 14mm Connector (500A series)


Model No.:AR-NI1-1-S140-CXX/AR-NI1-1-H140-TXX

Rated voltage:800V DC

Rated current:500A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

代碼 AR-NI1-1-SH140-XXX





Download: HVC 1POS 14mm Connector(AR-NI1-1-S140-CXX & AR-NI1-1-H140-TXX) Specificaiton

Product application
● PDU, Battery, Motor, Motor Controller

Description
● Rated Voltage : 800V AC/DC
● Rated Current : From 400A to 500A
● Insulation resistance : ≥500MΩ
● Withstand voltage : 3500VAC
● Operating Temperature : -40℃~125℃
● Cable range : 120mm-150mm2 wire
● Shielding : 360° shielding
● Mating Cycles : >100
● IP Class : IP67, IP6K9K (Mated)
● Number of Positions : 1 POS
● HVIL



Performance
● 14mm pin
● Excellent Electrical Insulation
● Secondary buckle
● Various Wire Diameter Application
● Muti Misplug-proof and key position design


Part Number Information
Straight
Plug
Pos
Number
Key HVIL Color Wire Spec
NI1-1-S140- 1 A Y/N A C14 (120mm2)
Y B C15 (150mm2)
U Y /
V G /
W R /

Receptacle Pos
Number
Key HVIL Color Wire Spec
NI1-1-H140- 1 A Y/N A T05
(Ø10mm Through-hole)
Y B T09
(M10 Screwed hole)
U Y Customizable aperture size
V G /
W R /
