HVC 90° 1POS 10mm Connector (250A series)  |產品中心|高壓連接器

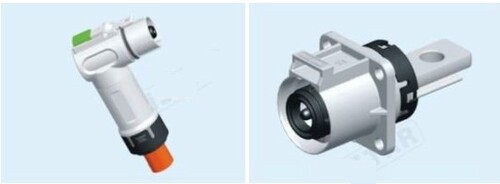

HVC 90° 1POS 10mm Connector (250A series)


Model No.:AR-NI1-1-B100-CXX/AR-NI1-1-H100-TXX

Rated voltage:800V DC

Rated current:250A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

代碼 AR-NI1-1-BH100-XXX





Download: HVC 90° 1POS 10mm Connector(AR-NI1-1-B100-CXX & AR-NI1-1-H100-TXX) Specificaiton

Product application
 PDU, Air conditioning, Defrosting, Electric heating, DCDC

Description
● Rated Voltage : 800V AC/DC
● Rated Current : From 200A to 250A
● Insulation resistance : ≥500MΩ
● Withstand voltage : 3500VAC
● Operating Temperature : -40℃~125℃
● Cable range : 50mm-70mm2 wire
● Shielding : 360° shielding
● Mating Cycles : >100
● IP Class : IP67, IP6K9K (Mated)
● Number of Positions : 1 POS
● HVIL



Performance
● 10mm pin
● Excellent Electrical Insulation
● Secondary buckle
● Various Wire Diameter Application
● Muti Misplug-proof and key position design


Part Number Information

Right Angle
Plug
Pos
Number
Key HVIL Color Wire Spec
NI1-1-B100- 1 A Y/N A C10 (50mm2)
Y B C11 (70mm2)
U Y /
V G /
W R /

Receptacle Pos
Number
Key HVIL Color Wire Spec
NI1-1-H100- 1 A Y/N A T03
(Ø6.5mm Through-hole)
Y T04
(Ø8.5mm Through-hole)
U T05
(Ø10.5mm Through-hole)
V TBD
(Customized hole shape & size)
W /
Note : Color code A stands for Orange, B stands for Black, Y stands for Yellow, G stand for Green, R santds for Red.
