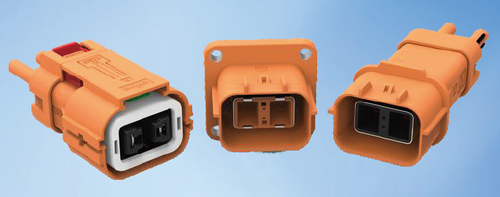

HVC 280 2POS Connector


Model No.:AR-HVC280-21X/AR-HVC280-22X/AR-HVC280-23X

Rated voltage:600V DC

Rated current:25A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

代碼 AR-HVC280-2XX





Download: HVC 280 2POS CONNECTOR(AR-HVC280-21X & AR-HVC280-22X & AR-HVC280-23X) Specificaiton




Reference Standard : LV214, USCAR-2, USCAR-37

Product application
● High voltage accessories connection system

Description
● Sealed connection system
● HVIL inserted (use short harness connector for plug end)
● Two-stage locking system for HVIL time delay
● Two HV power circuits
● Finger touching safe
● Five stage error-proof design
● Shielding range : 360° shielded from the line to the connector
● Cable range : power circuit : 2.5mm2 to 4mm2
                            HVIL circuit : 0.5mm2


Performance
● Current capacity : 25A continuous at 85℃
● Voltage : 600V
● Temperature range : -40℃ to +125℃
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB


Part Number Information
Keys Receptacle Straight Plug Straight Receptacle
2.5mm2 4mm2 2.5mm2 4mm2 2.5mm2 4mm2

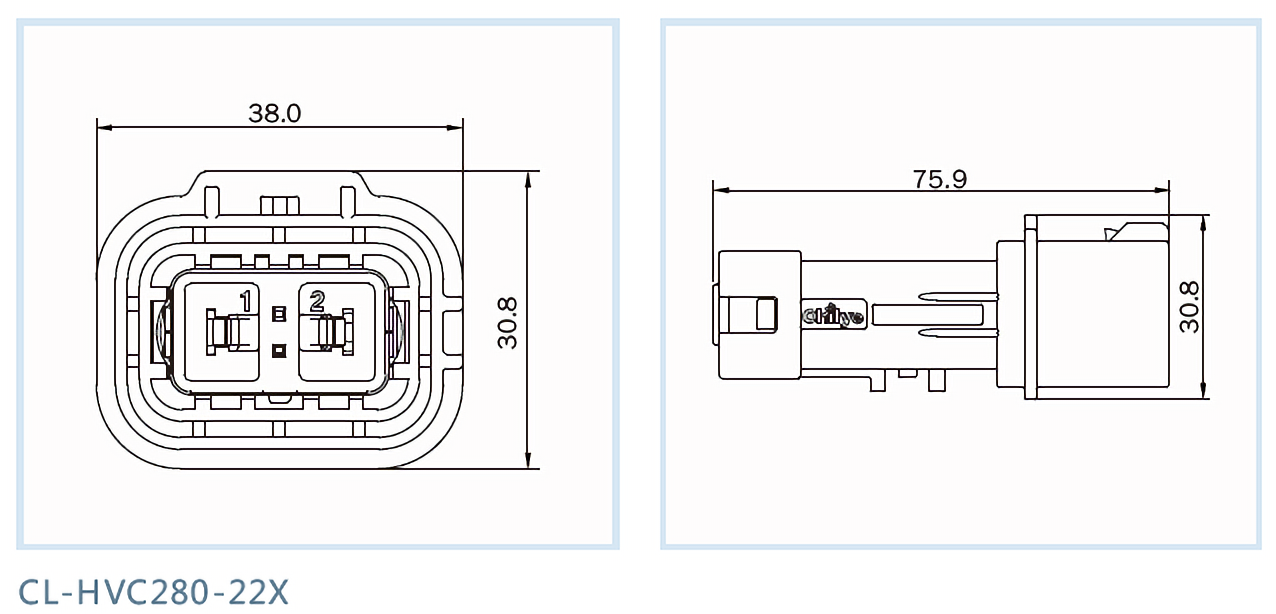

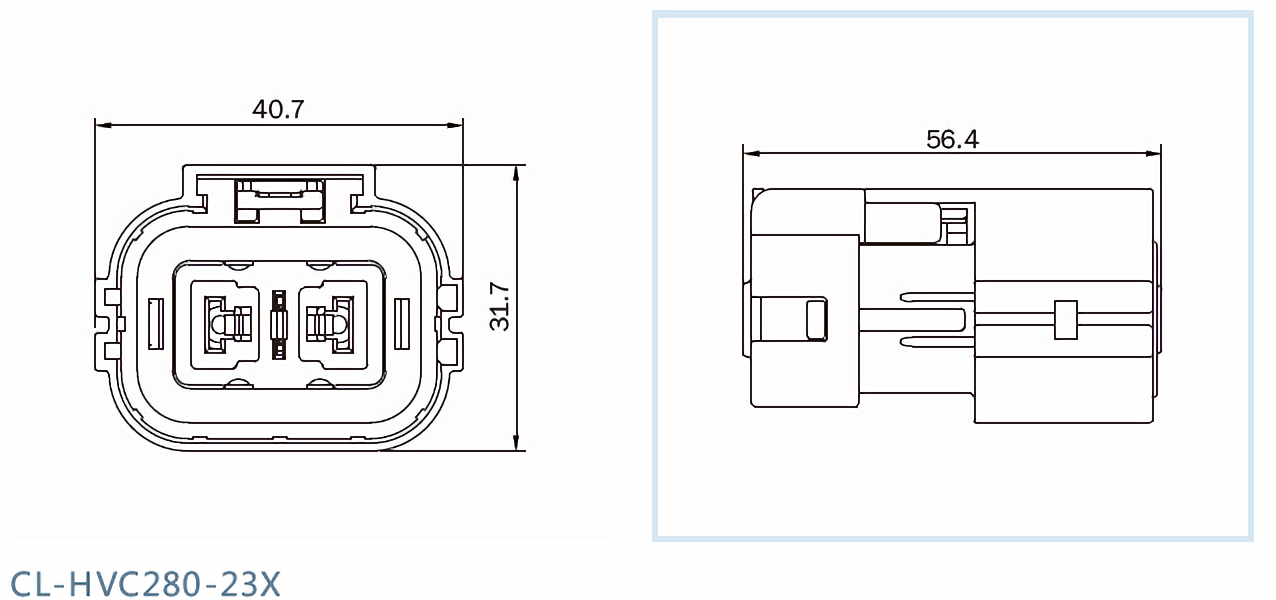

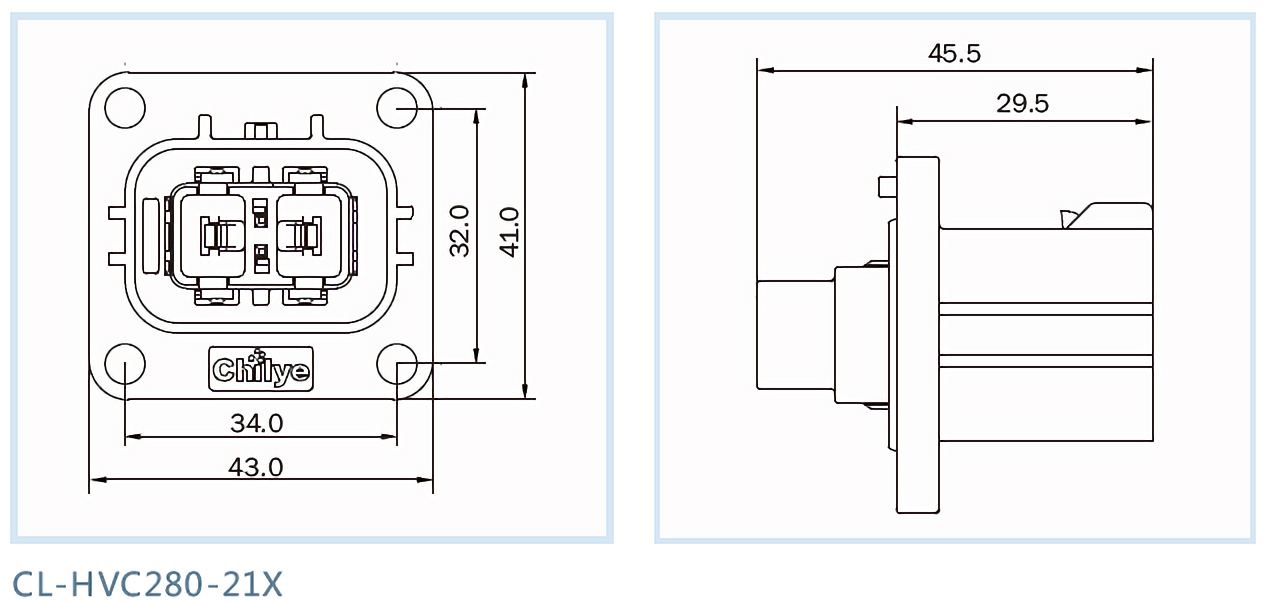

A CL-HVC280-21A-02 CL-HVC280-21A-04 CL-HVC280-23A-02 CL-HVC280-23A-04 CL-HVC280-22A-02 CL-HVC280-22A-04
B CL-HVC280-21B-02 CL-HVC280-21B-04 CL-HVC280-23B-02 CL-HVC280-23B-04 CL-HVC280-22B-02 CL-HVC280-22B-04
C CL-HVC280-21C-02 CL-HVC280-21C-04 CL-HVC280-23C-02 CL-HVC280-23C-04 CL-HVC280-22C-02 CL-HVC280-22C-04
D CL-HVC280-21D-02 CL-HVC280-21D-04 CL-HVC280-23D-02 CL-HVC280-23D-04 CL-HVC280-22D-02 CL-HVC280-22D-04
E CL-HVC280-21E-02 CL-HVC280-21E-04 CL-HVC280-23E-02 CL-HVC280-23E-04 CL-HVC280-22E-02 CL-HVC280-22E-04
