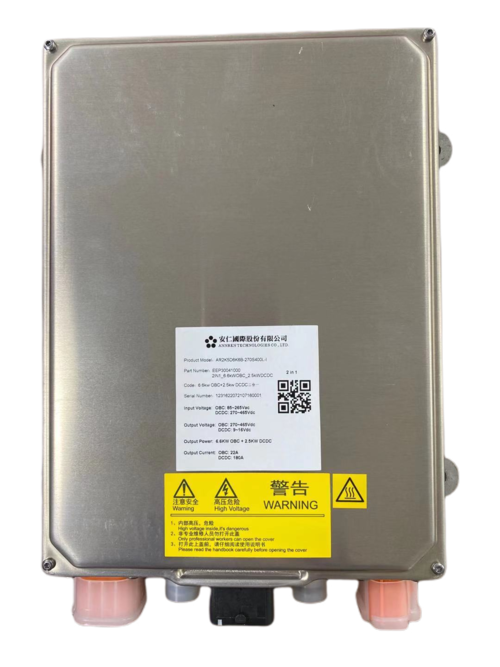

COMBO_2 in 1 2.5kW DCDC+6.6kW OBC with inverter Mode
型號：LWD2K5C6K6-D14C380-W
Code LWD2K5C6K6-D14C380-W
Download : 2 in 1 2.5kW DCDC+6.6kW OBC with inverter Mode
Electrical characteristics
|
Specifications |
Parameters |
Remark |
|
OBC Charging mode |
||
|
Rated output power |
6.6KW |
|
|
Input voltage range |
90-264VAC |
|
|
Input Current |
32A Max |
|
|
Power factor |
≥0.99(220Vac,Fully loaded) |
|
|
Output voltage range |
200-450VDC |
Can be configured according to customer's actual battery |
|
Max output current |
22A |
|
|
Efficiency |
≥95% |
Rated voltage |
|
Voltage accuracy |
±1% |
|
|
Current accuracy |
±1% |
|
|
Inverter mode |
||
|
Input voltage range |
240-450VDC |
|
|
Output voltage |
220Vac(±5%)/50Hz |
|
|
Power |
6.6kVA |
|
|
Efficiency |
≥94% |
|
|
Output harmonic distortion (THDv) |
＜3%（Linear load） |
|
|
Dynamic Response |
60ms（Linear load） |
|
|
Leakage current protection threshold |
≤30mA |
|
|
DC/DC mode |
||
|
Input voltage range |
200-450VDC |
|
|
Input current range |
<16A @240Vdc full load |
|
|
Efficiency |
≥94% |
|
|
Output voltage range |
9-16V |
|
|
Rated output voltage |
14V |
|
|
Rated output current |
180A |
|
|
Rated power |
2.5KW |
|
|
Peak power |
3.0KW |
|
|
Voltage ripple |
250mV Max |
|
|
Others |
||
|
Low voltage wake up |
12Vdc&200mAmax（WAKE_UP Signal） |
Wake BMS/VCU |
|
Wake-up method |
CAN、AC、CC/CP |
Support scheduled charging |
|
Communication method |
CAN-BUS |
|
|
Quiescent Current |
≤1mA |
Consume battery current in sleep/stop state. |
|
Protection characteristics |
Input over-voltage, output over-voltage, over- temperature protection, over-current protection, Output short circuit protection, communication fault protection |
|
|
EMC characteristics |
GB/T18387-2008，EN 55022 |
|
|
Operating temperature |
-40-85℃ |
|
|
Dimensions |
350x214x97mm |
|
|
Protection level |
IP67 |
|
|
Cooling method |
Liquid cooling, flow≥6L/min |
|
|
Weight |
≤9KG |
|
