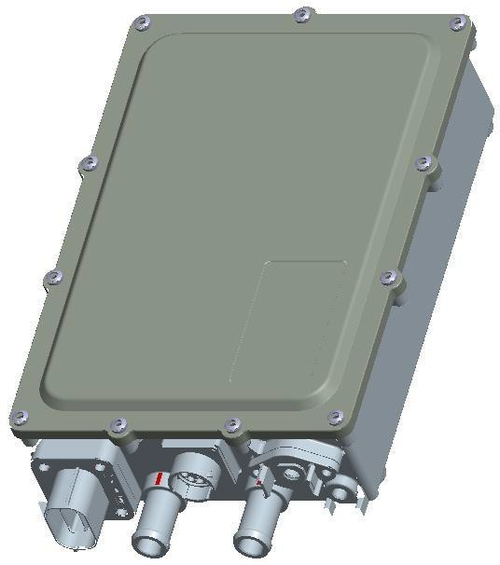

DC/DC_3KW_400-750VDC, 27.5Vdc_Module
Model No.:GVD510-3BM3R0MB
Power:3KW
Input Voltage:400V-750V
Output Voltage:27.5VDC
Efficiency:≥94%
Code GVD510-3BM3R0MB
Download:3KW DC/DC Convertor Module
Features
Rated Power: 3000W
Input Votage Range: 400V-750V
Output Voltage: 27.5Vdc
Dimensions: 180 × 120 × 46 (mm)
Specification
|
Specifications |
Parameters |
|
Rated power |
3KW |
|
Peak power |
3.6KW |
|
Input voltage range |
400- 750VDC |
|
Output voltage |
27.5Vdc |
|
Input current range |
0-10A |
|
Output peak current |
133A |
|
Output rated current |
110A |
|
Positive Peak efficiency |
≥0.94 |
|
Reverse rated power |
3KW |
|
Reverse peak power |
4.5KW (MAX) |
|
Reverse output voltage |
450V |
|
Reverse peak efficiency |
≥0.96 |
