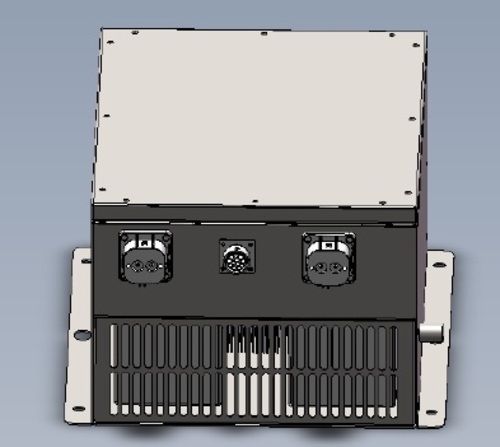

DC/AC_10KW_280-750VDC, 110/220VAC_Air
Model No.:DDAC1-10K2P
Power:10KW
Input Voltage:280~750VDC
Output Voltage:110VAC OR 220VAC
Output Current:45A
Code DDAC1-10K2P
Download:10KW DCAC HV INVERTER
Features
* High voltage input：280VDC～750VDC;
* Low voltage input：9VDC~30VDC;
* Output voltage: 110VAC OR 220VAC,50Hz (TWO TYPE)
* The working environment temperature range of the system is wide to -40℃～+85℃ (when the temperature is ≥65℃, the power output will be reduced)；
* Complete fault alarm and protection functions, including：
- Input overvoltage and undervoltage protection，
- Output over voltage, over current, short circuit protection；
- Input anti-reverse protection；
- Intelligent temperature derating；
- Over temperature protection；
Specification
|
Description |
Specification |
Remark |
|
DC high voltage input voltage range |
DC280V（Undervoltage point）~DC750V （Overpressure point） |
|
|
Cooling method |
Air Cooled |
|
|
DC low voltage input voltage range |
9VDC~30VDC; Rated 12VDC or 24VDC； |
Compatible with 24VDC input |
|
Range of working temperature |
－40℃～＋85℃ |
When the temperature is ≥65℃, the power output can be reduced |
|
Protection level |
IP65；Salt spray test requires more than 96h |
The mechanical strength of the shell conforms to the technical standard QC/T 413-2002 |
|
Rated DC input current |
> 38A |
|
|
Rated DC input voltage |
350VDC |
|
|
Maximum input power |
13kW |
|
|
Vibration resistance test |
Comply with relevant standards ISO 16750-3- 2012; GB/T 28046.3-2011 |
Meet functional level C requirements |
|
Resistance to mechanical shock |
Comply with relevant standards ISO 16750-3- 2012; GB/T 28046.3-2011； |
Meet functional level C requirements |
|
Load capacity |
Can carry inductive loads, such as household air conditioners, refrigerators, SPS loads, RCD loads, etc. |
|
|
Soft start time |
1~5S |
|
|
Output voltage and frequency |
Single-phase 220Vac 50Hz±1HZ sine wave |
When the input voltage is 280VDC~320VDC, the output voltage is quasi-sine wave |
|
Rated AC output current |
45A±1A |
|
|
Maximum output current |
50A |
Working time 60S |
|
Rated output capacity |
10.0kW |
|
|
Overload capacity |
110%~120% 1 minute |
Set the inverter current protection point to prevent over-current protection when the air conditioner starts instantaneously, which may cause it to fail to start or be judged as a short circuit |
|
Maximum efficiency under rated conditions（%） |
≥95% |
|
|
Protective function |
With over-temperature, over-current, over- voltage, under-voltage, short-circuit and other protection functions, it can automatically recover after the fault is cleared |
|
|
Inverter size |
384.6*327*205MM |
|

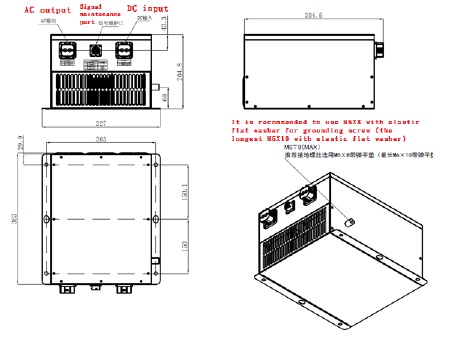

Structure
