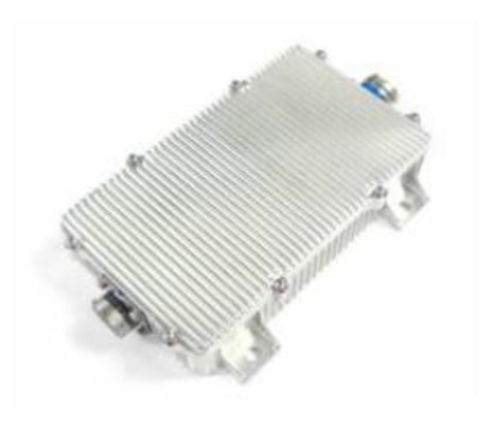

DC/DC_300W_200-800VDC, 24VDC_Natural cooling
Model No.：ATD300-540S24-N
Output Power：300W
Input Voltage：200~800Vdc
Output Voltage：24 VDC
Dimensions：208x129x45mm
Cooling System：Natural cooling
Communication Method：CAN-BUS
Code ATD300-540S24-N
Download:300W Natural Cooling DC/DC for 24H Monitoring
Features
Output Power：300W
Input Voltage：200~800Vdc
Output Voltage：24 VDC
Dimensions：208x129x45mm
Cooling System：Natural cooling
Communication Method：CAN-BUS
Specification
| Description | Technical specifications | Remark | |
| Rated output power | 300W | Peak power 360W | |
| Input voltage range | 200-800VDC | ||
| Output rated voltage | 24VDC | Adjustable | |
| Rated output current | 12.5A | ||
| External Auxiliary power VCC | 9-32VDC | VCC | |
| Efficiency | ≥95% | Rated voltage | |
| Output voltage ripple | ≤500mVPK-PK | ||
| Output voltage accuracy | ± 0.5VDC | ||
| Wake up method | CAN, KL15 | ||
| Communication method | CAN-BUS | ||
| Quiescent Current | ≤ 5mA | Sleep mode/Battery current consumption under stop status | |
| Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP, | ||
| EMC | GB/T 18655-2010 | ||
| Operating temperature | -40~85℃ | ||
| Dimensions | 208x129x45mm | ||
| Cooling System | Natural cooling | ||
| Weight | ≤1.2KG | ||

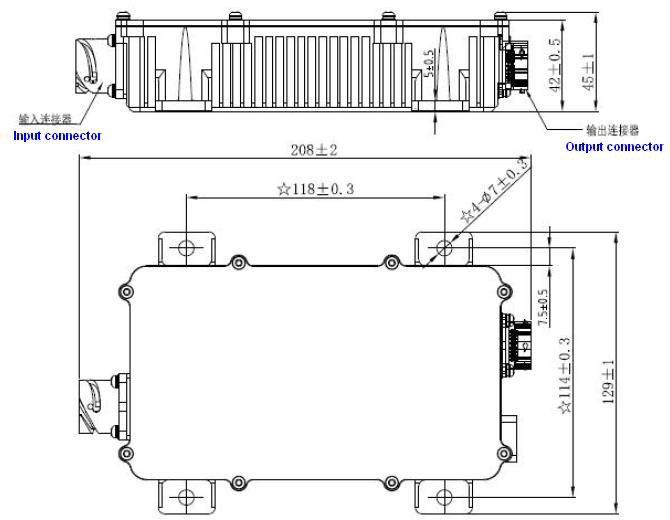

Structural parameters
Connector Model
| Position | Socket model | Function | Brand | Plug model |
| A | L52-STP083-12P-W | Control Side | LeadWay | L52-STP063-12S-W |
| B | L52-BT6106-09PX-C | HV input | LeadWay | L52-BT6105-09SX-C |
