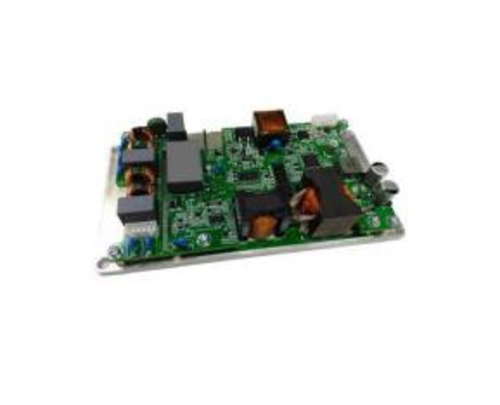

DC/DC_300W_200-800VDC, 24VDC_Module
Model No.：ATD300-540S24-M
Output Power：300W
Input Voltage：200~800Vdc
Output Voltage：24 VDC
Dimensions：178 x 90 x 33mm
Cooling System：Module
Communication Method：CAN-BUS
Code ATD300-540S24-M
Download:300W DC/DC Converter-Module
Features
Output Power：300W
Input Voltage：200~800Vdc
Output Voltage：24 VDC
Dimensions：178x90x33mm
Cooling System：Module
Communication Method：CAN-BUS
Specification
| Description | Technical specifications | Remark | |
| Rated output power | 300W | Peak power 360W | |
| Input voltage range | 200-800VDC | ||
| Output rated voltage | 24VDC | Adjustable | |
| Rated output current | 12.5A | ||
| External Auxiliary power VCC | 9-32VDC | VCC | |
| Efficiency | ≥95% | Rated voltage | |
| Output voltage ripple | ≤500mVPK-PK | ||
| Output voltage accuracy | ± 0.5VDC | ||
| Wake up method | CAN, KL15 | ||
| Communication method | CAN-BUS | ||
| Quiescent Current | ≤ 5mA | Sleep mode/Battery current consumption under stop status | |
| Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP, | ||
| EMC | GB/T 18655-2010 | ||
| Operating temperature | -40~85℃ | ||
| Dimensions | 178x90x33mm | ||
| Cooling System | by aluminum | ||
| Weight | ≤0.5KG | ||

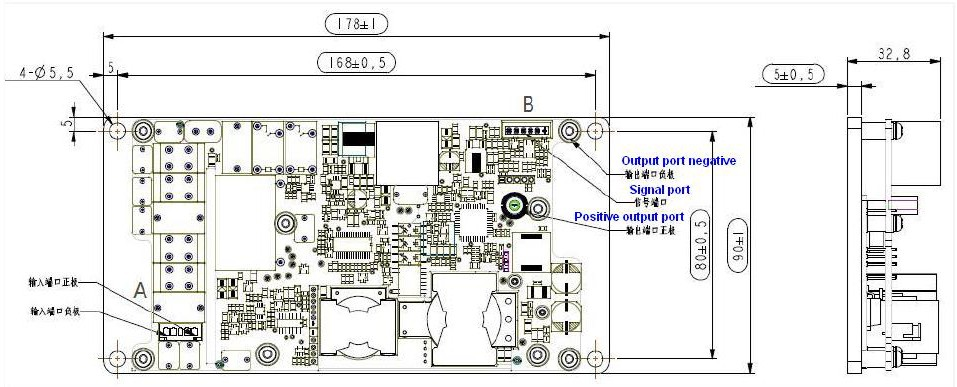

Structural parameters
Connector Model
| Position | Socket model | Function | Brand | Plug model |
| A | B5B-XH-A | HV Input | JST | XHP-5 Pin: SXH-001T-P0.6N) |
| B | B6B-XH-A | Signal Connector | JST | XHP-6 Pin: SXH-001T-P0.6N) |
