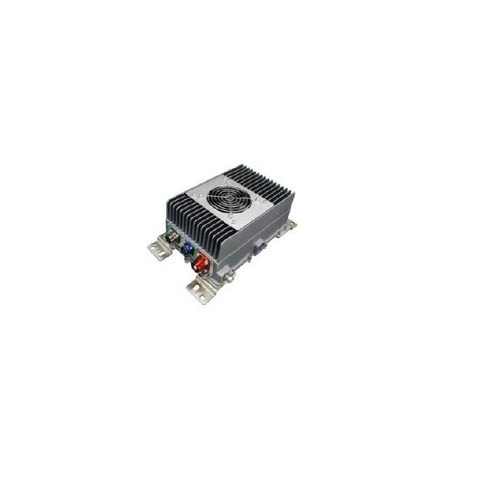

DC/DC_2KW_400-750VDC, 13.8VDC_Fan
Model No.:ATD2K-540S14-A
Output Power：2KW
Input Voltage：400-750Vdc
Output Voltage：13.8VDC
Dimensions：262x180x120mm
Cooling System：Fan
Protection Level：IP67
Communication Method：CAN-BUS
Code ATD2K-540S14-A
Download: 2KW DC/DC Converter-Fan
Features
● Output Power：2KW
● Input Voltage：400-750Vdc
● Output Voltage：13.8VDC
● Dimensions：262x180x120mm
● Cooling System：Fan
● Protection Level：IP67
● Communication Method：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
|
Description |
Technical specifications |
Remark |
|
Operating temperature |
-40~85℃ |
Temp. for air inlet port |
|
Rated output power |
2KW |
Peak: 2.4 KW |
|
Input voltage range |
400~750VDC |
|
|
Output rated voltage |
13.8VDC |
Adjustable |
|
Rated output current |
145A |
|
|
Auxiliary power VCC |
9~18VDC |
VCC |
|
Efficiency |
≥95% |
Rated voltage |
|
Output voltage ripple |
≤500mVPK-PK |
|
|
Output voltage accuracy |
±1% |
|
|
Wake-up method |
CAN 、 KL15 、 High Voltage |
|
|
Communication method |
CAN-BUS |
|
|
Quiescent Current |
≦2mA |
Consume battery current in sleep/stop state |
|
Protection characteristics |
Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP |
|
|
EMC characteristics |
GB/T 18655-2010 |
|
|
Dimensions |
262x180x120mm |
|
|
Cooling System |
Fan cooling |
|
|
Protection Level |
IP67 |
|
|
Weight |
≦3KG |
|
Structural parameters
Connector model
|
Position |
Socket model |
Function |
Brand |
Plug model |
|
A |
RT00122PN03 |
DC Input |
Amphenol |
RT06122SNHEC03 |
|
B |
RT00128PN03 |
Signal Control |
Amphenol |
RT06128SNHEC03 |
|
C |
GH01-F200-1NNB-T21 |
Input Positive |
Guoweitong |
M8 Screw |
|
D |
M8 Bolt |
Input Negative |
\ |
M8 Screw |
