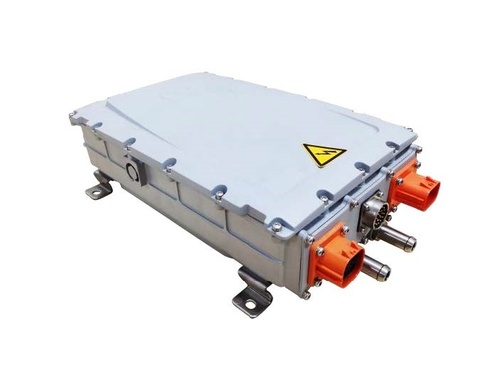

OBC_6.6KW_85~265VAC,450~750VDC,12A_Liquid_Model No.:ATC6K6-220S640-W
Charging Standard: SAE
Output Power: 6.6KW
Input Voltage: 85-265VAC
Output Voltage: 450~750VDC
Cooling: Liquid
Communication: CAN-BUS
Software: Digital software design 10
Meet SAEJ1772 standard
Code ATC6K6-220S540-W
Download: 6.6KW OBC Liquid
Model No.:ATC6K6-220S640-W
Features
● Model No.:ATC6K6-220S640-W
● Charging Standard: SAE
● Output Power：6.6KW
● Input Voltage：85-265VAC
● Output Voltage：450~750VDC
● Dimensions：364X224X100mm
● Cooling System：Liquid
● Communication Method：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design 10
● Weight: ≦8.5KG
● Meet SAEJ1772 standard
Specification
| Description | Technical specifications | Remark | |
| Rated output power | 6.6KW | ||
| Input voltage range | 85~265VAC | ||
| Output voltage range | 450~750VDC | ||
| Maximum output current | 12A | ||
| Auxiliary power VCC | 9-32VDC | VCC | |
| Efficiency | ≥95% | Rated voltage | |
| Voltage accuracy | ±1% | ||
| Current accuracy | ±3% | ||
| Wake up output | 12/24Vdc&200mAmax (WAKE_UP signal) | Wake up BMS/VCU | |
| Wake up method | CAN/AC/PP/CP | Support appointment charging | |
| Communication method | CAN-BUS | ||
| Quiescent Current | ≦2mA | Battery current consumption during sleep/stop | |
| Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP,OCP, output short-circuit protection, CAN communication breakdown protection | ||
| Electromagnetic compatibility characteristics | GB/T 18387-2008, EN 55022 | ||
| Operating temperature | -40~85℃ | ||
| Dimensions | 364x224x111mm | ||
| IP Level | IP67 | ||
| Cooling method | Liquid, flow rate ≥6L/min | ||
| Weight | ≦8.5KG | ||
| CAN byte speed | 250Kbps/500Kbps | ||
