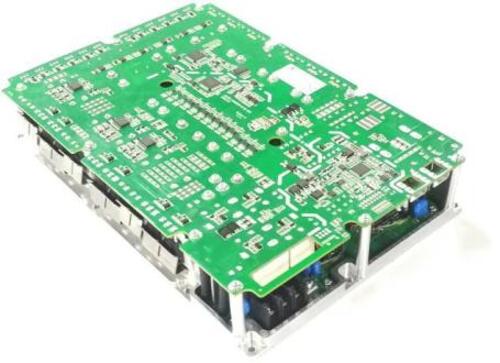

6.6KW OBC Module
Model No.:ATC6K6-220S380-M
Power:6.6KW
Input Voltage:85-265VAC
Output Voltage:200~450VDC
Efficiency:95%
Code ATC6K6-220S380-M
Download: 6.6KW OBC Module
Features
● Charging Standard: IEC
● Output Power：6.6KW
● Input Voltage：85-265VAC
● Output Voltage：200~450VDC
● Dimensions：279X172X58mm
● Cooling System：Module
● Communication Method：CAN-BUS
● Weight: ≦4.5KG
Specification
| Description | Technical specifications | Remark |
| Rated output power | 6.6KW | |
| Input voltage range | 85~265VAC | |
| Output voltage range | 200~450VDC | |
| Maximum output current | 20A | |
| Auxiliary power VCC | 9-32VDC | VCC |
| Efficiency | ≥95% | Rated input voltage |
| Voltage accuracy | ±1% | |
| Current accuracy | ±3% | |
| Wake up output | 12/24Vdc&200mAmax (WAKE_UP signal) | Wake up BMS/VCU |
| Wake up method | CAN、AC、CP/PP | Support appointment charging |
| Communication method | CAN-BUS | |
| Quiescent Current | ≦2mA | Battery current consumption during sleep/stop |
| Protection characteristics | Input over and under voltage, output over and under voltage, input anti-reverse connection, output over current and short circuit protection, over temperature protection | |
| Electromagnetic compatibility characteristics | GB/T 18387-2008, EN 55022 | |
| Operating temperature | '-40~85℃ | |
| Dimensions | 279x172x58mm | |
| Packaging method | Modular | |
| Cooling method | Heat sink attached to bottom plate | |
| Weight | ≦4.5KG | |
| CAN byte speed | 250Kbps/500Kbps |
Structural parameters
Connector information
| Function | Maker | Receptacle model | Plug model |
| Control terminal | MOLEX | 105314-1216 | 105308-1216 |
| AC input | / | M4 binding post | M4 screw |
| DC output | / | M4 binding post | M4 screw |
| Maker | Model | Description | |
| MOLEX | 105314-1216 | 1 | VCC- |
| 2 | LOCK_FB2 | ||
| 3 | LOCK+ | ||
| 4 | LOCK- | ||
| 5 | LOCK_FB1 | ||
| 6 | CAN-H | ||
| 7 | CAN-L | ||
| 8 | WARE_UP | ||
| 9 | VCC+ | ||
| 10 | CP_OUT | ||
| 11 | VCU_EN | ||
| 12 | NTC1+ | ||
| 13 | NTC1-\NTC2- | ||
| 14 | NTC2+ | ||
| 15 | CP | ||
| 16 | PP | ||
| AC input | M4 binding post | L | FireWire (4mm2) |
| N | Neutral (4mm2) | ||
| G | Ground | ||
| DC output | M4 binding post | + | Positive output level (2.5mm2) |
| ＿ | Output negative level (2.5mm2) | ||
Label
| Product Name | ATC6K6-220S380-M | ||
| Code | ATC6K6-220S380-M-AR01 | ||
| Product Model | ATC6K6-220S380-M | ||
| Serial Numbe | |||
| Input Voltage | 85~265VAC | Output Voltage | 200~450VDC |
| Output Current | 20A | Output power | 6.6KW |
