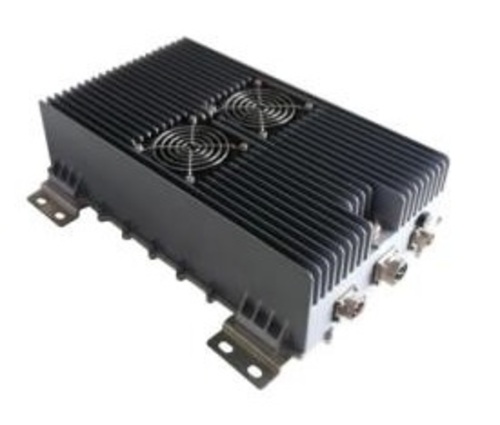

OBC_6.6KW_85~265VAC, 400~650VDC, 14A_Fan
Model No.:ATC6K6-220D54027-A
Power:6.6KW
Input Voltage:85~265VAC
Output Voltage:400-650VDC
Output Current:14A
Efficiency:≥94%
Code ATC6K6-220D54027-A
Download:6.6KW On Board Charger Fan
Features
● Output Power：6.6KW
● Input Voltage：85-265VAC
● Output Voltage：400-650VDC
● Dimensions：314x211x115mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤10KG
Specification
| Description | Technical specifications | Remark | |
| Operating temperature | -40-85℃ | Working for long time | |
| Rated output power | 6.6KW | ||
| Input voltage range | 85~265VAC | ||
| Output voltage range | 400-650VDC | ||
| Maximum output current | 14A | ||
| Efficiency | ≥94% | Rated voltage | |
| Voltage accuracy | ±1% | ||
| Current accuracy | ±3% | ||
| Low voltage Aux. Output | 100W | 27V | |
| Wake up method | AC | ||
| Communication method | CAN-BUS | ||
| Quiescent Current | ≤2mA | The battery current is consumed in the sleep/stop state. | |
| Protection characteristics | Input OVP/UVP, output OVP/UVP,OTP, OCP, output short circuit protection, CAN communication breakdown protection | ||
| Electromagnetic compatibility characteristics | GB/T18387-2008，EN 55022 | ||
| Dimensions | 314x211x115mm | ||
| IP Rating | IP67 (except fan) | ||
| Cooling System | Fan | ||
| Weight | ≤10KG | ||

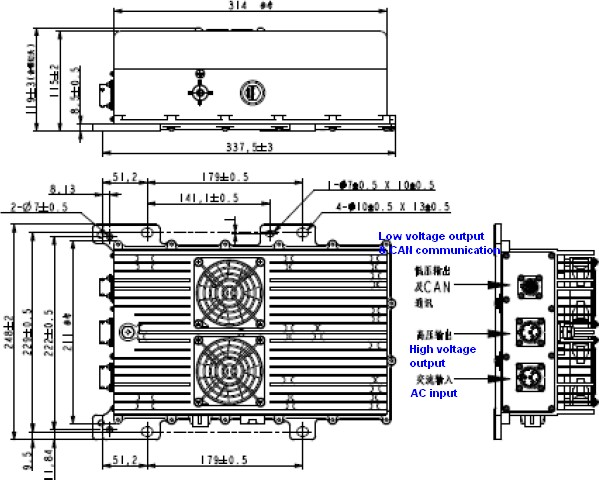

Structural parameters
Connector information
| Position | Function | Receptacle model | Plug model | Maker |
| A | AC input | HVSL364024A | HVSL364064A106I | Amphenol |
| B | DC output | HVC2P63MV406 | HVC2P63FS406 | Amphenol |
| C | Signal socket | RT001823PN03 | RT061823SNHEC03 | Amphenol |
