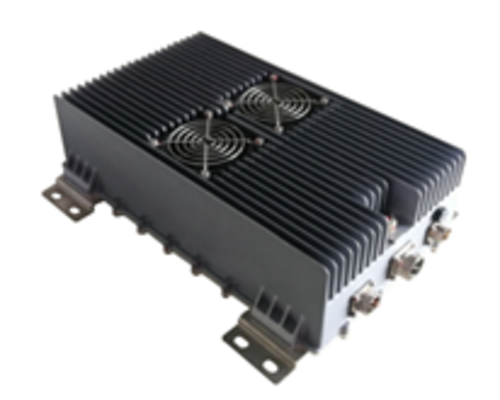

OBC_6.6KW_90~264VAC, 250~450VDC, 20A_Fan
Model No.:ATC6K6-220D38014-A
Power:6.6KW
Input Voltage:90~264VAC
Output Voltage:250~450VDC
Output Current:20A
Efficiency:96%
Code ATC6K6-220D38014-A
Download:6.6KW On Board Charger Fan
Features
● Charging Standard: IEC
● Output Power：6.6KW
● Input Voltage：90-264VAC
● Output Voltage：200-450VDC
● Dimensions：396x244x126mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤12KG
Specification
| Description | Technical specifications | Remark | |
| Rated output power | 6.6KW | ||
| Input voltage range | 90~264VAC | ||
| Output voltage range | 200-450VDC | ||
| Maximum output current | 20A | ||
| Auxiliary power VCC | 9-18VDC | VCC | |
| Efficiency | ≥96% | Rated voltage | |
| Voltage accuracy | ±1% | ||
| Current accuracy | ±3% | ||
| Wake up method | AC、CP/PP、EN | ||
| Communication method | CAN-BUS | ||
| Quiescent Current | ≤2mA | The battery current is consumed in the sleep/stop state. | |
| Protection characteristics | Input over and under voltage, output over and under voltage, over temperature protection, over current protection, output short circuit protection, battery reverse connection protection, communication fault protection | ||
| Electromagnetic compatibility characteristics | GB/T18387-2008，EN 55022 | ||
| Operating temperature | -40-85℃ | ||
| Dimensions | 396x244x126mm | ||
| IP Rating | IP67 (except fan) | ||
| Cooling System | Fan | ||
| Weight | ≤12KG | ||
Structural parameters
.png)
.png)
Connector information
| Position | Function | Plug model | Maker |
| A | AC input | C10518N1-04-1-2 G002 | 中航光电 |
| B | DC output | RT06144SNHEC03 | Amphenol |
| C | Signal socket | RT06128SNHEC03 | Amphenol |
Interface definition
| Function | Model | Description | ||||||||||||||||||
| AC input(A) | C10518N1-04-3-1 G001 | 1 | L (FireWire) | |||||||||||||||||
| 2 | N (zero line) | |||||||||||||||||||
| 3 | PE (Protected Ground) | |||||||||||||||||||
| 4 | NC | |||||||||||||||||||
| DC output(B) | RT00144PN03 | A | Output positive | |||||||||||||||||
| B | NC | |||||||||||||||||||
| C | Output negative | |||||||||||||||||||
| D | NC | |||||||||||||||||||
| Signal socket(C) | RT00128PN03 | A | CAN-H | |||||||||||||||||
| B | CP | |||||||||||||||||||
| C | PP | |||||||||||||||||||
| D | Constant battery power (12V input) | |||||||||||||||||||
| E | OBC-EN (wake-up signal) | |||||||||||||||||||
| F | NC | |||||||||||||||||||
| G | CAN-L | |||||||||||||||||||
| H | GND | |||||||||||||||||||
