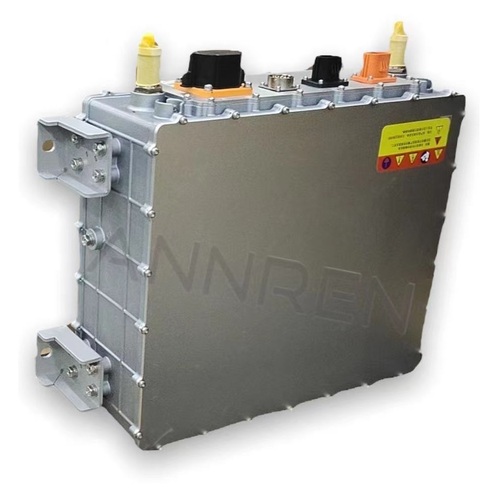

OBC_40KW_304~456VAC(three phrase), 450~750VDC, 80A_Liquid_Model No.:ATC40K-380S640-W
Model No.:ATC40K-380S640-W
Power:40KW
Input Voltage:304~456VAC(three phrase)
Output Voltage:450~750VDC
Efficiency:95%
Code ATC40K-380S640-W
Download: 40KW ON BOARD CHARGER LIGUID
Features
● Charging Standard: IEC, GB/T
● Output Power：40KW
● Input Voltage：Three phase: 304-456VAC Line to Line ,three phase four lines)
Single input 176-264VAC
● Output Voltage：450~750VDC
● Dimensions：448X380X160mm
● Cooling System：Liquid
● Communication Method：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
|
Description |
Technical specifications |
Remark |
|
Rated output power |
40KW |
Support single phase 6.6KW |
|
Input voltage range |
Three phase: 304 456VAC Line to Line ,three phase four lines) |
Single input 176-264VAC |
|
Output voltage range |
450~750VDC |
|
|
Maximum output current |
80A |
Single input: 12A |
|
Auxiliary power VCC |
9-32VDC |
VCC |
|
Efficiency |
≧95% |
@nominal voltage |
|
Voltage accuracy |
±1% |
|
|
Current accuracy |
±3% |
|
|
Low voltage wake up |
12/24Vdc&200mAmax (WAKE_UP signal) |
Wake up BMS/VCU |
|
Wake up method |
CAN, AC, CC/CP |
Support appointment charging |
|
Communication method |
CAN-BUS |
|
|
Quiescent Current |
≦2mA |
Battery current consumption during sleep/stop |
|
Protection characteristics |
Input over and under voltage, output over and under voltage, input anti-reverse connection, output over current and short circuit protection, over temperature protection |
|
|
Electromagnetic compatibility characteristics |
GB/T 18387-2008, EN 55022 |
|
|
Operating temperature |
-40~85℃ |
|
|
Dimensions |
448x380x160mm |
|
|
IP Level |
IP67 |
|
|
Cooling method |
Liquid, flow rate ≧15L/min |
|
|
Weight |
≦45KG |
|
|
CAN byte speed |
250Kbps/500Kbps |
|
