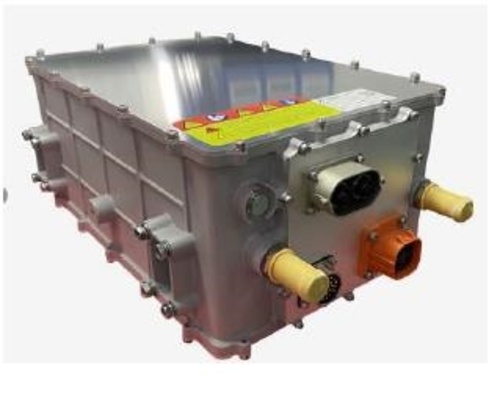

OBC_22KW_304~456VAC(three phrase), 450~750VDC, 40A_Liquid_Model No.:ATC22K-380S640-W
Charging Standard: IEC
Output Power：22KW
Input Voltage：Three-phase 304~456VAC (L-L, three-phase four-lines) Single phase 176~264VAC
Output Voltage：450~750VDC
Cooling System：Liquid
Code ATC22K-380S640-W
Downloadl：22KW ON BOARD CHARGER LIGUID
Features
● Charging Standard: IEC
● Output Power：22KW
● Input Voltage：Three-phase 304~456VAC (L-L, three-phase four-lines) Single phase 176~264VAC
● Output Voltage：450~750VDC
● Dimensions：377x252x165mm
● Cooling System：Liquid
● IP Rating：IP67
● Communication：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
| Product Name | 22KW ON BOARD CHARGER LIGUID |
| Model No. | ATC22K-380S640-W |
| Standard | IEC |
| Output Power | 22KW, Support single-phase 6.6KW |
| Input Voltage Range | Three-phase 304~456VAC (L-L, three-phase four-lines), Single phase 176~264VAC |
| Output Voltage | 450-750VDC |
| Output Current | Maximum 40A, Single phase input: 14A |
| Efficiency | ≥95% |
| Low voltage wake-up | 12/24Vdc&200mAmax (WAKE_UP signal), Wake up BMS/VCU |
| Size (mm) | 377x252x165mm |
| Cooling System | Liquid |
| IP Rating | IP67 |
| Communication | CAN-BUS |
| Software | Digital software design |
| Enclosure | Aluminum alloy made |
| Weight | ≦20KG |
