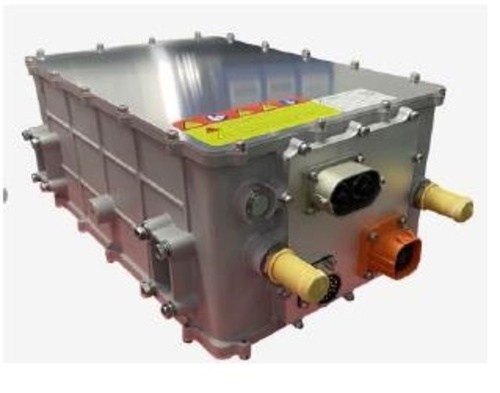

OBC_13KW_85~265VAC_450-750VDC_24A_LIGUID_Model No.:ATC13K-220S640-W
Charging Standard: SAE
Output Power：13KW
Input Voltage：85~265VAC
Output Voltage：450~750VDC
Cooling System：Liquid
IP Rating：IP67
Communication：CAN-BUS
Code ATC13K-220S640-W
Download:13KW ON BOARD CHARGER LIGUID
Model No.:ATC13K-220S640-W
Features
● Charging Standard: SAE
● Output Power：13KW
● Input Voltage：85~265VAC
● Output Voltage：450~750VDC
● Dimensions：374x252x165mm
● Cooling System：Liquid
● IP Rating：IP67
● Communication：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
|
Specification |
Remark |
|
|
Rated Output Power |
13KW |
|
|
Input voltage range |
85~265VAC |
|
|
Output voltage range |
450-750VDC |
|
|
Maximum output current |
24A |
|
|
Auxiliary power supply |
9-32VDC |
VCC |
|
Efficiency |
≥94% |
@nominal voltage |
|
Voltage accuracy |
±1% |
|
|
Current accuracy |
±3% |
|
|
Low voltage wake up |
12/24Vdc&200mAmax (WAKE_UP signal) |
Wake up BMS/VCU |
|
Wake up method |
AC/PP/CP/VCU_EN |
Support appointment charging |
|
Communication method |
CAN-BUS |
|
|
Static Current |
≦4mA |
Sleep mode/ consume batter current at stop status |
|
Protection |
Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection |
|
|
EMC characteristics |
GB/T 18387-2008, EN 55022 |
|
|
Operating temperature |
-40-85℃ |
|
|
Dimensions |
374x252x165mm |
|
|
IP Rating |
IP67 |
|
|
Cooling method |
Liquid, flow rate≧ 10L/min |
|
|
Weight |
≦20KG |
|
