OBC_11KW_304~456VAC(three phrase), 450-750VDC, 20A_Liquid_Model No.:ATC11K-380S640-W
Charging Standard: IEC
Output Power：11KW
Input Voltage：3-phase 304~456VAC (L-L, 3-phase 4-lines) Single phase 175~265VAC
Output Voltage：450~750VDC
Cooling System：Liquid
Communication：CAN-BUS
Code ATC11K-380S640-W
Download: 11KW ON BOARD CHARGER LIGUID

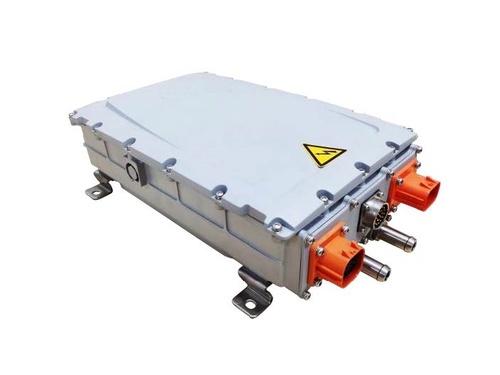

Model No.:ATC11K-380S640-W
Features
● Charging Standard: IEC
● Output Power：11KW
● Input Voltage：Three-phase 304~456VAC (L-L, three-phase four-lines) Single phase 175~265VAC
● Output Voltage：450~750VDC
● Dimensions：369x238x98mm
● Cooling System：Liquid
● IP Rating：IP67
● Communication：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
| Description | Parameters | Remark | |
| Output Power | Three-phase 11KW | Single-phase 6.6KW | |
| Input voltage range | Three-phase 304~456VAC (L-L, three-phase four-lines) | Single-phase 176 ~ 264VAC | |
| Output voltage range | 450-750VDC | ||
| Low voltage wake-up | 12/24Vdc&200mAmax (WAKE_UP signal) | ||
| Current accuracy | ±3% | ||
| Voltage accuracy | ±1% | ||
| Output maximum current | 20A | Single phase input: 12A | |
| Efficiency | ≥94% | @nominal voltage | |
| Static Current | ≦2mA | Sleep mode/ consume batter current at stop status | |
| Cooling System | Liquid | ||
| IP Rating | IP67 | ||
| EMC characteristics | GB/T 18387-2008, EN 55022 | ||
| Protection | Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection | ||
| Weight | ≦10.5KG | ||
