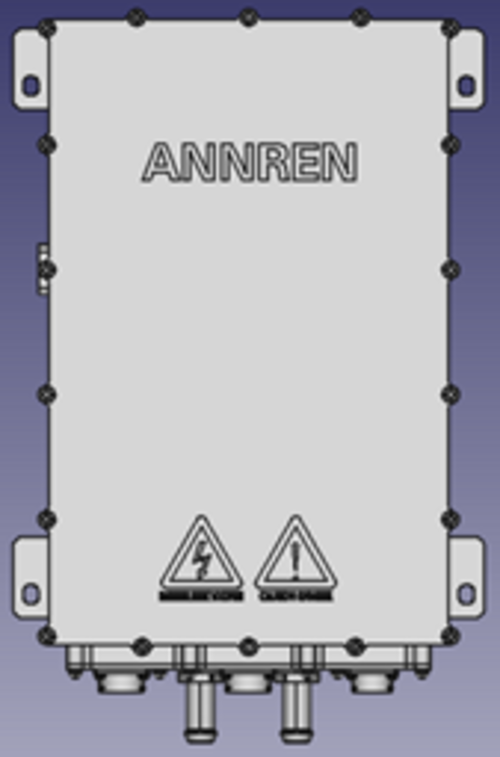

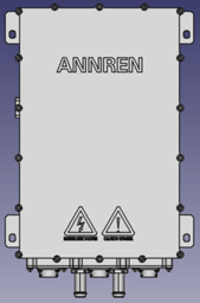

OBC_11KW_304~456VAC,400~650VDC,23A_Liquid_Model No.:ATC11K-380S540-W
Model No.:ATC11K-380S540-W
Power:11KW
Input Voltage:304~456VDC/176~264VAC
Output Voltage:400~650VDC
Output Current:23A/14A
Efficiency:95%
Code ATC11K-380S540-W
Download:11KW ON BOARD CHARGER
Specification
|
Specification |
Remark |
|
|
Rated Output Power |
11KW |
Support single-phase input 6.6KW |
|
Input voltage range |
Three phase 304~456VAC (line to line voltage, three phase four wire) |
Single phase 176~264VAC |
|
Output voltage range |
400~650VDC |
|
|
Maximum output current |
23A |
Single phase input: 14A |
|
External source |
9-32VDC |
VCC |
|
Efficiency |
≥95% |
Rated voltage |
|
Voltage accuracy |
±1% |
|
|
Current accuracy |
±3% |
|
|
Low voltage wake up |
12/24Vdc&200mAmax (WAKE_UP signal) |
Wake up BMS/VCU |
|
Wake up method |
CAN、AC、CC/CP |
Support appointment charging |
|
Communication method |
CAN-BUS |
|
|
Quiescent Current |
≤2mA |
Consume battery current in sleep/stop state. |
|
Protection characteristics |
Input over and under voltage, output over and under voltage, over temperature protection, over current protection, output short circuit protection, communication fault protection |
|
|
EMC characteristics |
GBT 18387：2008，EN 55022 |
|
|
Operating temperature |
-40-85℃ |
|
|
Dimensions |
364x224x100mm |
|
|
Protection level |
IP67 |
|
|
Cooling method |
Liquid cooling, ≥8L/min |
|
|
Weight |
≤10.5KG |
|

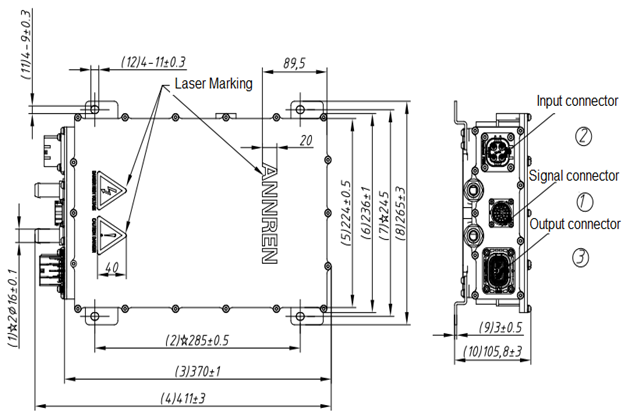

Structural parameters
Connector Table
| Pinout | Function | Maker | Receptacle Model no. | Plug Model No. |
| A | AC input | Amphenol | HVSL364024A | HVSL364064A106I |
| B | DC output | Amphenol | HVSL630022A106 | HVSL630062A |
| C | Signal | Amphenol | RT001823PN03 | RT061823SNHEC03 |
Interface difinition
|
AC input (A) |
DC output (B) |
Signal control (C) |
|||||||
|
L1 |
FireWire 1 |
1 |
Output positive |
A |
CAN1-L |
J |
NTC2- |
T |
NC |
|
L2 |
FireWire 2 |
2 |
Output negative |
B |
VCC+ |
K |
NTC2+ |
V |
NC |
|
L3 |
FireWire 3 |
A |
Interlock 1 Connection interlock 2 |
C |
VCU_EN |
L |
CAN1-H |
V |
TB_R |
|
N |
Zero line |
B |
Interlock 2 Connection Interlock 1 |
D |
CC |
M |
LOCK+ |
W |
GND |
|
G |
Ground wire |
|
|
E |
CP |
N |
LOCK- |
X |
CAN2-L |
|
|
|
|
|
F |
WAKE_UP |
P |
LOCK feedback |
Y |
CAN2-H |
|
|
|
|
|
G |
NTC1- |
R |
CC_OUT |
Z |
EN2 |
|
|
|
|
|
H |
NTC1+ |
S |
NC |
|
|
