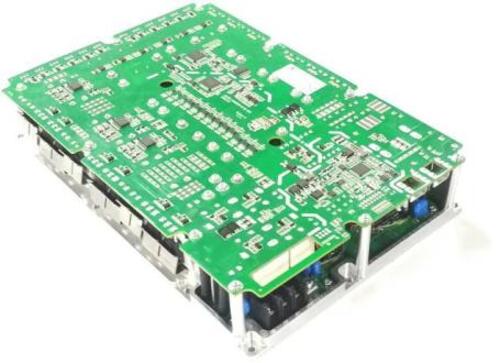

OBC_11KW_Three-phase 304 ~ 456VAC (line-line voltage,three-phase four-wire)Single-phase 176 ~ 264VAC, 200~450VDC, Three-phase: 32A, 3.3KW single phase: 10A, 6.6KWsingle phase: 20A_Module
Model No.:ATC11K-200450S14-M
Power:11KW
Input Voltage:Three-phase 304 ~ 456VAC/Single phase 220 ± 15% VAC
Output Voltage:200~450VDC
Efficiency:95%
Code ATC11K-200450S14-M
Download: 11KW On Board Charger Module
Features
● Charging Standard: IEC
● Output Power：11KW
● Input Voltage：Three-phase 304~456VAC (L-L, three-phase four-lines) Single phase 176~264VAC
● Output Voltage：450~750VDC
● Dimensions：300x200x60mm
● Cooling System：Liquid
● IP Rating：IP67
● Communication：CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design
Specification
| Description | Parameters | Remark | |
| Output Power | Three-phase 11KW / single-phase 3.3KW or 6.6KW | ||
| Input voltage range | Three-phase 304 ~ 456VAC (line-line voltage,three-phase four-wire)Single-phase 176 ~ 264VAC | ||
| Output voltage range | 200~450VDC | ||
| Low voltage (VDC) | 13.8VDC (5Amax) | ||
| Activation method | CP / CC / hard wire | ||
| Voltage accuracy | ±1% | ||
| Output maximum current | Three-phase: 32A, 3.3KW single phase: 10A, 6.6KWsingle phase: 20A | ||
| Voltage ripple coefficient | ≤±1% | ||
| Current accuracy | ±3% | Half load or more | |
| Efficiency | ≥94% | Rated voltage Full load | |
| Parallel function | Parallel networking through internal CANcommunication, supporting up to 8 modules inparallel. | ||
| Output response time | The rise time of the on-board charger outputvoltage should be less than 300ms, and theovershoot should be less than 10%. After receivingthe shutdown command, the current drops below10% in 300ms, and drops to 0A in 500ms. | ||
| Other protection features | Input over voltage, input under voltage, output overvoltage, output under voltage, short circuit, outputover current, over temperature, reverse connectionprotection, potential equalization and groundprotection, power failure protection | ||
| Over temperature protection | When the temperature reaches 85 ° C, the outputpower is halved, and the temperature is lower than 80 °C within 10 minutes, and the load is automaticallyrestored. After 10 minutes, the temperature is higherthan 80 ° C, then the power is turned off. When thetemperature is higher than 90 ° C, the power is turnedoff directly. | ||
| Dielectric strength | Output to outer casing | 2000VDC /60S 10mA Max | |
| Input to outer casing | 1500VAC /60S 10mA Max | ||
| Input to output | 3000VAC /60S 10mA Max | ||
| Insulation resistance | Input to output | ≥20MΩ | |
| Input to outer casing ≥ |
≥20MΩ | ||
| Electromagneticcompatibility | Radiation emission | GBT 18387：2008，EN 55022 CLassB | |
| Conducted emission | GBT 18387：2008，EN 55022 CLassB | ||
| Radiation immunity | GBT 18387：2008，EN 55022 CLassB | ||

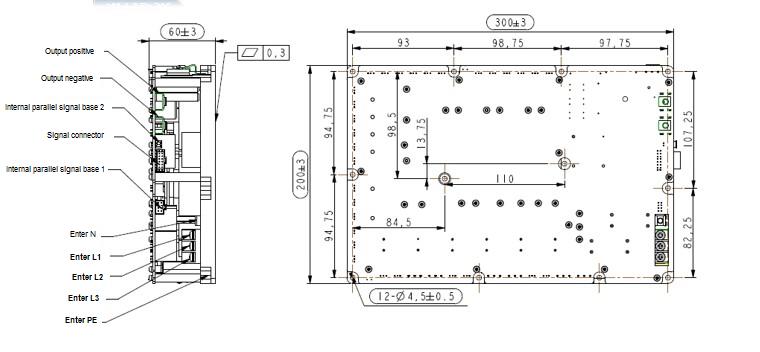

Structural parameters
.jpg)
Vdc connector: 12V 200Amax
Wakeup signal connector
Connector information
| Item | Function | Maker | Product connector model | Customer connector model | ||
| A | Signal control | Molex | 105314-1216 | 105308-1216 | ||
| B | AC input | / | M4 stud | M4 screw | ||
| C | DC input | / | M4 stud | M4 screw | ||
Label
| Product Name | 11KW On Board Charger Module | ||
| Product Model | ATC11K-200450S14-M | ||
| Serial Numbe | |||
| Input Voltage | Three-phase 304 ~456VACSingle phase 220 ±15% VAC | Output Voltage | 200~450VDC |
| Output Current | 32A | Output power | 11KW |
| Supplier | ANNREN TECHNOLOGIES CO., LTD. | ||
