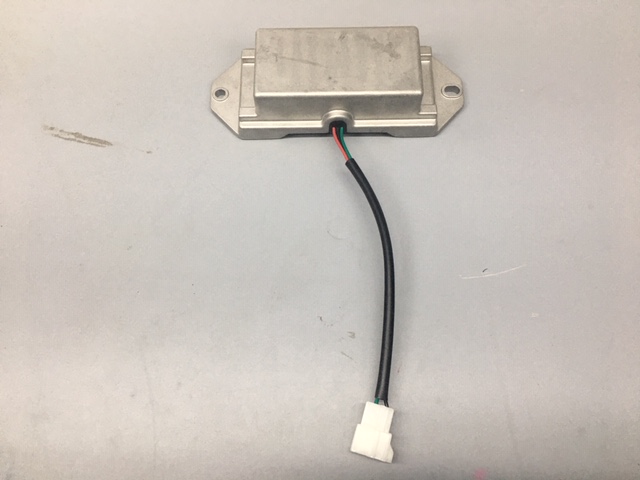

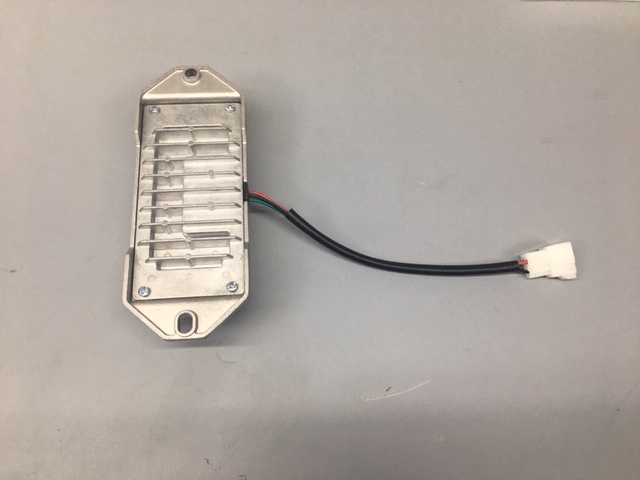

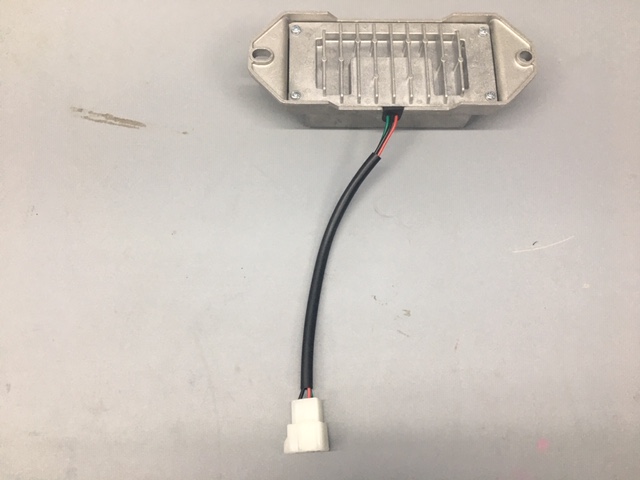

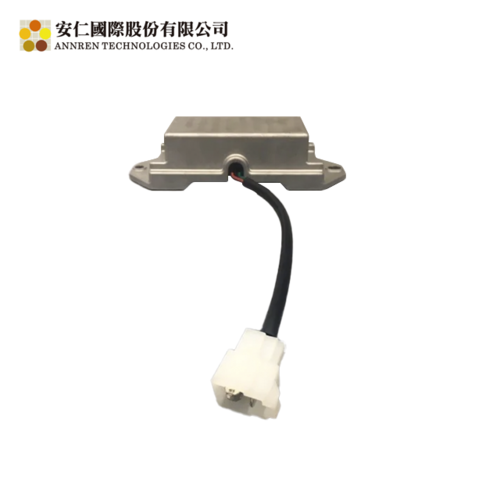

DC/DC_240W_6-18VDC-26V

Download: 240W 12V-24V DC-DC Boost Converter

Feature

● Input voltage : 6~18V DC
● Output voltage : 26V± 0.5V DC ( Adjustable)
● Output current : 10Amp Max
● Power : 240W Max
● Ripple Voltage : <250mV
● Quiescent current : Approx <3mA at Vin=13V
● Working Temperature range : -40°C to 80°C
● Protections : Over load, Reverse polarity, Short circuit protection , Over Voltage , Under Voltage
● Efficiency : >90% @ 13V i/p & 10A load
● Envelope Dimensions : 185x69x45mm
● Weight of unit : ~ 0.5 Kg
● Ingress protection : IP65
● Application : Automotive
