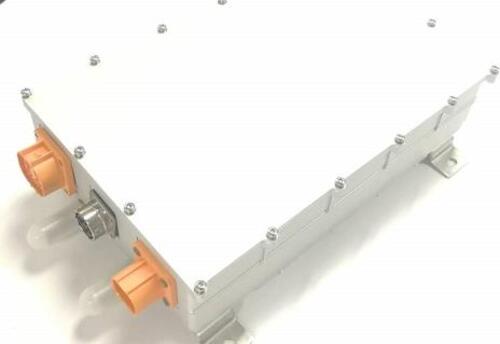

11KW ON BOARD CHARGER
Model No.:AR11K3S-400580L
Power:11KW
Input Voltage:304~456VDC/90~264VDC
Output Voltage:400~750VDC
Output Current:32A/20A
Efficiency:95%
Code AR11K3S-400580L
Download:11KW ON BOARD CHARGER
Features
| Product Name | 11KW ON BOARD CHARGER |
| Model No. | AR11K3S-400580L |
| Standard | GB/T / IEC |
| Power | 11KW |
| Input Voltage | Three-phase 304~456VAC/single phase 90~264VAC |
| Output Voltage | 400~750VDC |
| Output Current | Three phase: 32A, 6.6KW single phase: 20A |
| Efficiency | ≥95% |
| Module Low Voltage (VDC) | 13.8VDC（4Amax） |
| Size (mm) | 345x224x100mm |
| Cooling System | Liquid Cool |
| IP Rating | IP67 |
| Scope | Various new energy vehicles |
| Hardware | Small size, light weight and stable performance |
| Firmware | Full digital software design, redundant protection function design |
| Weight | Net: 10KG Gross: 12KG |
Specification
| Specification | Remark | ||
| Environmental characteristics | Operating temperature | -40~85℃ | long-time working |
| Vibration/noise | Meet the QC/T 895-2011 standard | ||
| Salt spray experiment | Meet the QB/T 2423.17-2008 standard | ||
| Output Power | Three phase 11KW / single phase 6.6KW | ||
| Input voltage range | Three-phase 304~456VAC (line-to-line voltage, three-phase four-wire) Single phase 90~264VAC | ||
| Output voltage range | 400~750VDC | ||
| Low voltage input auxiliary source | 13.8VDC（4Amax） | ||
| Activation method | CP/CC/hard wire | ||
| Voltage accuracy | ±1% | ||
| Output maximum current | 11KW Three phase: 32A, 6.6KW single phase: 20A | ||
| Voltage ripple factor | ≤±1% | ||
| Current accuracy | ±3% | ≧Half loa | |
| Effectiveness | ≥95% | Rated voltage Full load | |
| Output response time | The rise time of the output voltage of the car charger should be less than 300ms, and the overshoot should be less than 10%. After receiving the shutdown command, the current drops below 10% within 300ms and drops to 0A within 500ms. | ||
| Other protection features | Input overvoltage, input undervoltage, output overvoltage, output undervoltage, short circuit, output overcurrent overtemperature, reverse connection protection potential equalization and ground protection, power failure protection. | ||
| Over temperature protection | When the temperature reaches 85 °C, the output power is reduced by half. The temperature is <80 °C in 10 minutes, and the full load is automatically restored. After 10 minutes, the temperature is >80 °C, then it is turned off. When the temperature is >90 °C, it will be shut down directly. | ||
| Dielectric strength | Input to the outer casing | 2000VDC /60S 10mA Max | |
| Input to output | 1500VAC /60S 10mA Max | ||
| Input to output | 3000VAC /60S 10mA Max | ||
| Insulation resistance | Input to the outer casing | ≥20MΩ | |
| Input to the outer casing | ≥20MΩ | ||
| EMC | Electromagnetic immunity | GB/18487.3-2001 Class B | Cooperate with the whole vehicle |
| Electromagnetic disturbance | GB/18487.3-2001 Class B | Cooperate with the whole vehicle | |

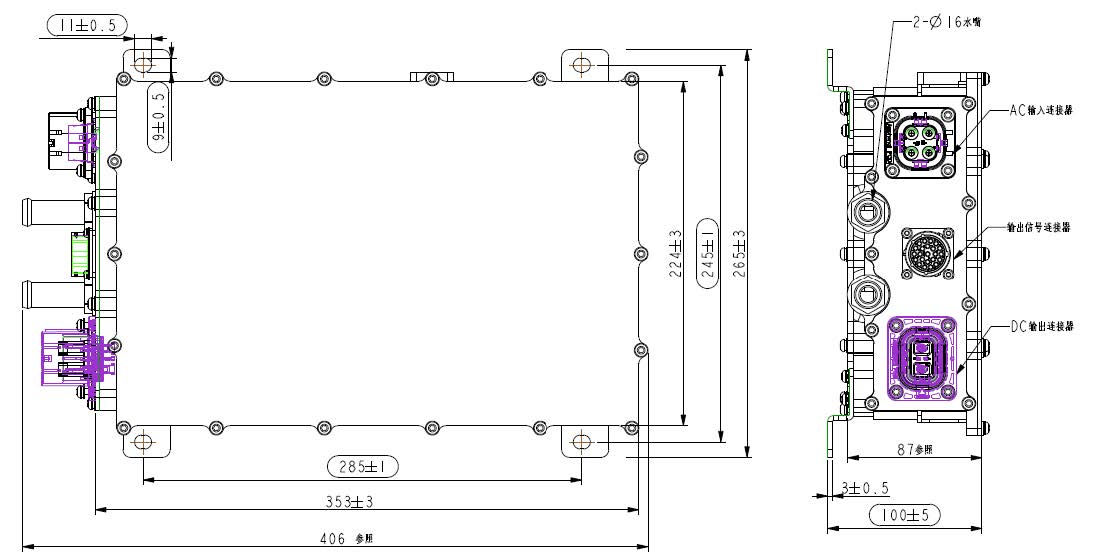

Structural parameters
| Pinout | Receptacle Model no. | Function | Maker | Plug Model No. | Terminal Model No. | Stopper Model No. |
| A | HVSL364024A | AC input | Amphenol | HVSL364064A104I | C310026001 | \ |
| B | HVSL630022A | DC output | Amphenol | HVSL630062A | C310003623 | \ |
| C | RT001823PN03 | Signal | Amphenol | RT061823PNHEC03 | SS16M1F | AT13-204-2005 |

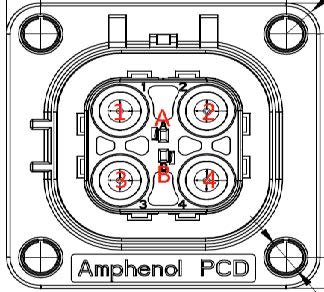

| MAKER | Model No. | Description | Remark | ||
| AC input Amphenol |
HVSL364024A | 1 | Fire line L1 | L1 |  |
| 2 | Fire line L2 | L2 | |||
| 3 | Fire line L3 | L3 (single fire line fixed input) | |||
| 4 | N | Neutral/midline | |||
| A | NC | NC | |||
| B | NC | NC | |||
| casing | N | Ground line | Product enclosure | Whole machine housing terminal | |
| DC output Amphenol |
HVSL630022A | 1 | positive | Output positive |  |
| 2 | negative | Output negative | |||
| A | Interlock 1 | Connection interlock 5 | |||
| B | Interlock 2 | Connection interlock 6 | |||

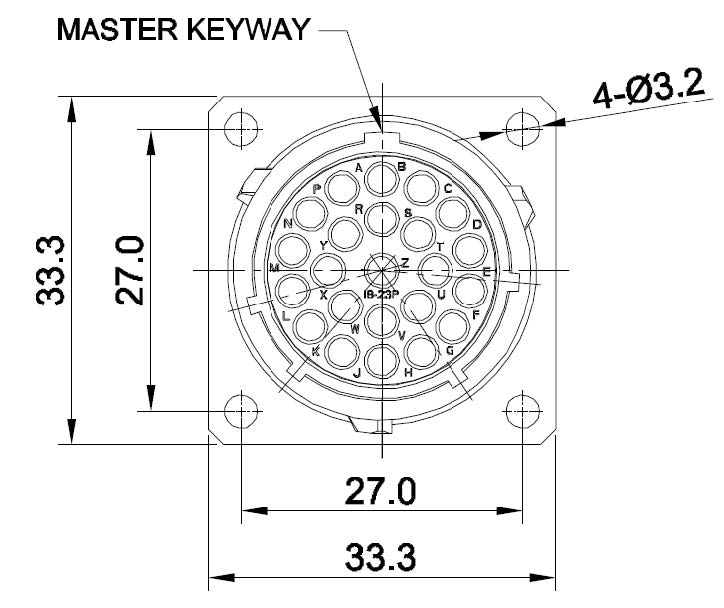

| Signal Amphenol |
RT001823PSN03 | A | CAN1-L | Normal input | |
| B | VCC+ | Normal input | |||
| C | VCU_EN | Hard-wire wake-up OBC, enable signal (active high) | |||
| D | CC | CC | |||
| E | CP | CP | |||
| F | WAKE_UP | VCU/BMS wake-up signal (100mA) Isolated from input constants |
|||
| G | NTC1- | Temperature sensor 1 negative | |||
| H | NTC1+ | Temperature sensor 1 positive | |||
| J | NTC2- | Temperature sensor 2 negative | |||
| K | NTC2+ | Temperature sensor 2 is positive | |||
| L | CAN1-H | CAN high | |||
| M | LOCK+ | Electronic locks | |||
| N | LOCK+ | Electronic locks | |||
| P | LOCK feedback | Electronic locks | |||
| R | CC_OUT | CC status output, turn on low level | |||
| S | NC | NC | |||
| T | NC | NC | |||
| U | NC | NC | |||
| V | TB_R | Terminal resistance selection, short circuit to C pin, the resistance is effective | |||
| W | GND | GND | |||
| X | CAN2-L | Internal parallel CAN2 low | |||
| Y | CAN2-H | Internal parallel CAN2 high | |||
| Z | NC | NC | |||
 |
|||||
Label
| Product Name | 11KW ON BOARD CHARGER | ||
| Product Part No. | E25. AR-11K3S-400580L | ||
| Product Model | AR11K3S-400580L | ||
| Serial number | 2020XXXXXXXX | ||
| Input Voltage | 3 phase 304~456VAC 1 phase 90~264VAC |
Output Voltage | 400~750VDC |
| Output Current | 3 phase: 32A 6.6KW 1 phase: 20A |
Output power | 11KW |
| Supplier | ANNREN TECHNOLOGIES CO., LTD. | ||
