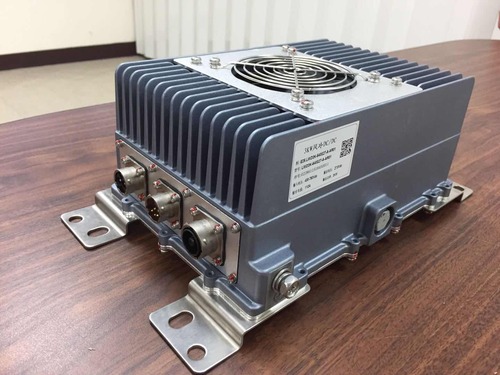

3.0KW DC/DC Converter Fan System
Model No.:AR-3K-540S27-A-AR01
Power:3KW
Input Voltage:400-750VDC
Output Voltage:27.5VDC
Output Current:110A
Efficiency:95%
Code AR-3K-540S27-A-AR01
Download: 3KW DC/DC Converter Fan System Specificaiton
Features
● Size (mm): 335X185X120mm
● Cooling System: Fan
● IP Rating: IP67
● Communication Method：CAN
● Enclosure: Aluminum alloy made
● Software: Digital software design
● Weight: 5.6Kg(Net), 6Kg(Gross)
| Description | Technical specifications | Remark | |
| Operating temperature | -40~85℃ | 85~100℃，Can be derated to 40% of work | |
| Rated output power | 3KW(Continuous operation at full load) | Peak power 3.6KW | |
| Input voltage range | 400-750VDC | ||
| Output rated voltage | 27.5VDC | Adjustable voltage | |
| Rated output current | 110A | ||
| Auxiliary power VCC | 9-32VDC | ||
| Efficiency | 95% | Rated voltage Full load | |
| Output voltage ripple | ≤300mVPK-PK | ||
| Protection characteristics | Input over-voltage, output over-voltage, input anti-reverse connection, output over-current and short-circuit protection, over-temperature self-recovery | ||
| Over temperature protection | The bottom plate temperature reaches 85 °C to start derating output; the temperature exceeds 100 °C, shut down; the temperature is lower than 95 °C, self-recoverable | ||
| Dielectric strength | Input to output | 3000VDC/1min 1mA max | |
| Input to the outer casing | 3000VDC/1min 1mA max | ||
| Insulation resistance | Input to output | ≥20MΩ | |
| Input to the outer casing | ≥20MΩ | ||
| Battery compatibility | Radiation emission | GB/T 18655-2010 Class 3 | |
| Conducted emission | GB/T 18655-2010 Class 3 | ||
| Static immunity | GB/T 19951-2005 | Air discharge：15KV，Contact discharge 8KV | |
| Radiation immunity | GB/T 18655-2010 Class 3 | ||
| High current injection | GB/T 17619-1998 | ||
| Fast burst immunity | GB/T 17626.4-2008 1KV | ||
Structural parameters
Connector information（customizable）
| Position | Socket model | Features | Brand | Plug model |
| A | RT00122PN03 | DC input | Amphenol | RT06122SNHEC03 |
| B | RT00128PN03 | Control terminal | Amphenol | RT06128SNHEC03 |
| C | RTHP0141PN-H1 | Output positive | Amphenol | RTHP6141SNH-25PS2 |
| D | M8 screw bolt | Output negative | \ | M8 Screw |
Interface definition（for reference）
| Vendor | Model | Description | |
| Amphenol | RT00128PN03 | A | NC |
| B | CANL | ||
| C | CANH | ||
| D | Mask line | ||
| E | GND | ||
| F | NC | ||
| G | NC | ||
| H | Enable | ||
| Amphenol | RT00122PN03 | A | Input positive |
| B | Input negative | ||
| 1 | Interlock 1 connection 2 | ||
| 2 | Interlock 2 connection 1 | ||
| Amphenol | RTHP0141PN-H1 | + | Output positive |
