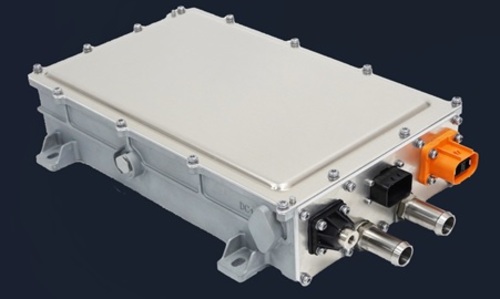

6KW DC/DC Converter-Liquid


8-ATD6K-540S27-W

Output Power:6KW

Input Voltage:400~750Vdc

Output Voltage:27.5Vdc

Dimensions:326x211x83mm

Protection Level:IP67

Communication Method:CAN-BUS

Enclosure: Aluminum alloy made

Code 8-ATD6K-540S27-W





Download:  6.6KW DCDC Converter-Liquid.pdf

Description

Technical specifications

Remark

Operating temperature

-40~85℃

Coolant inlet

temperature

Rated output power

6KW



Input voltage range

400~750VDC



Output rated voltage

27.5VDC

adjustable

Rated output current

218A



Auxiliary power

9~32VDC

VCC

Efficiency

≥95%

Rated voltage

Output voltage ripple

≤500mVPK-PK



Output voltage accuracy

±1%



Wake-up method

CAN KL15 High Voltage DC input



Communication method

CAN-BUS



Quiescent Current

≦2mA

Consume battery current in sleep/stop

state



Protection characteristics



Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP



EMC characteristics

GB/T 18655-2010



Dimensions

326x211x83mm



Cooling System

Liquid cooling , flow rate 12L/min



Protection Level

IP67



Weight

≦5KG



Structural parameters (unit:mm)
