1KW DC-DC Converter  |Products|LV(HV) DC/DC Converters

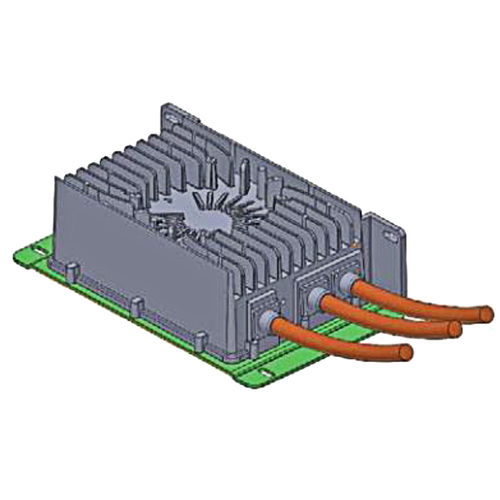

1KW DC-DC Converter


Model No. ATD1K-96S12-F

Output Power:1KW

Input Voltage:82-114Vdc

Output Voltage:14.2Vdc

Cooling System:Fan

Code 1KW_DCDC_96S12





Download:  ATD1K-96S14_F_1KW DC-DC Converter.pdf


Product Features:

1   Output Power:1KW
2   Input Voltage:82-114Vdc
3   Output Voltage:14.2Vdc
4   Dimensions(L x W x D)mm:287 x 168 x 89 5   Cooling System:Fan
6   Communication Method:CAN-BUS
7   IP Rating: IP67
8   Enclosure: Aluminum alloy made
9   Software: Digital software design nd save strength.


Product Specification :

Specification Remark
DC Input
Rated input voltage 96Vdc /
Input voltage range 82/114Vdc /
Input Current 12A Max /
Rated input power 1100W±10% Rated input and output
Efficiency 93% Rated input and output
DC Input
Rated output voltage 14.2V /
Output voltage range 82-114V Adjustable via communication
Rated output current 70(MAX) /
Output Power 1000W maximum output power
Current accuracy ±2% /
Voltage accuracy ±2% /
Ripple voltage ±1%Vop-p 20MHz bandwidth/peak to peak
communication method CAN Communicate with battery BMS
communication protocol / Communication protocol with battery BMS
