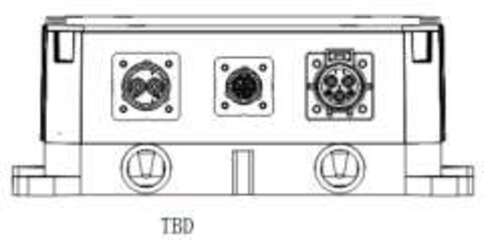

2KW DC/DC Converter Liquid產品圖
2KW DC/DC Converter Liquid

Model No.:LWD2K-540S14-W

Power:2KW (continuous operation at full load)

Input Voltage:400-750VDC

Output Voltage:14VDC

代碼: LWD2K-540S14-W
2.5KW DC/DC Converter Module產品圖
2.5KW DC/DC Converter Module

Model No.:LWD2K5-540S14-M

Power:2.5KW

Input Voltage:400-750VDC

Output Voltage:13.8VDC

代碼: LWD2K5-540S14-M
2.5KW DC/DC Converter system產品圖
2.5KW DC/DC Converter system

Model No.:LWD2K5-540S14-W

Power:2.5KW

Input Voltage:250-450VDC/400-750VDC

Output Voltage:14VDC

Output Current:175A

Efficiency:95%

代碼: LWD2K5-540S14-W
300W DC/DC CONVERTER產品圖
300W DC/DC CONVERTER

Model No.:LWD300-540S12-A

Power:300W

Input Voltage:200~800VDC

Output Voltage:12VDC

Output Current:25A

Efficiency:92%

代碼: LWD300-540S12-A
300W DC/DC CONVERTER SYSTEM產品圖
300W DC/DC CONVERTER SYSTEM

Model No.:LWD300-540S24-A

Power:300W

Input Voltage:200~800VDC

Output Voltage:24VDC

Output Current:12.5A

Efficiency:92%

代碼: LWD300-540S24-A
DC/DC_300W_200-800VDC, 24VDC_Module產品圖
DC/DC_300W_200-800VDC, 24VDC_Module

Model No.:LWD300-540S24-M

Output Power:300W

Input Voltage:200~800Vdc

Output Voltage:24 VDC

Dimensions:178 x 90 x 33mm

Cooling System:Module

Communication Method:CAN-BUS

代碼: LWD300-540S24-M
DC/DC_300W_200-800VDC, 24VDC_Natural cooling產品圖
DC/DC_300W_200-800VDC, 24VDC_Natural cooling

Model No.:LWD300-540S24-N

Output Power:300W

Input Voltage:200~800Vdc

Output Voltage:24 VDC

Dimensions:208x129x45mm

Cooling System:Natural cooling

Communication Method:CAN-BUS

代碼: LWD300-540S24-N
3KW DC/DC Converter Fan System產品圖
3KW DC/DC Converter Fan System

Model No.:LWD3K-540S27-A

Power:3KW

Input Voltage:400-750VDC

Output Voltage:27.5VDC

Efficiency:93%

代碼: LWD3K-540S27-A
3KW DC/DC Converter Module產品圖
3KW DC/DC Converter Module

Model No.:LWD3K-540S27-M

Power:3KW DC/DC Converter Module

Input Voltage:400-750VDC

Output Voltage:27.5VDC

代碼: LWD3K-540S27-M
3KW DC/DC Converter Module產品圖
3KW DC/DC Converter Module

Model No.:LWD3K-650S27-M

Power:3KW

Input Voltage:400~750VDC

Output Voltage:27.5VDC

Output Current:110A

Efficiency:95%

代碼: LWD3K-650S27-M

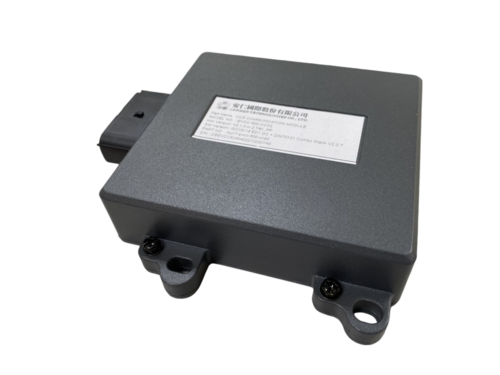

Electric Vehicle Communication Controller (EVCC)產品圖
Electric Vehicle Communication Controller (EVCC)

Model No.: DB-EVCC-500

HomePlug Green PHY™ 1.1(IEEE 1901)

ISO/IEC 15118, DIN SPEC 70121

IEC61851-1, IEC 61851-23, IEC 61851-24

GB/T 27930-2015, GB/T 18487.1-2015

代碼: DB-EVCC-500

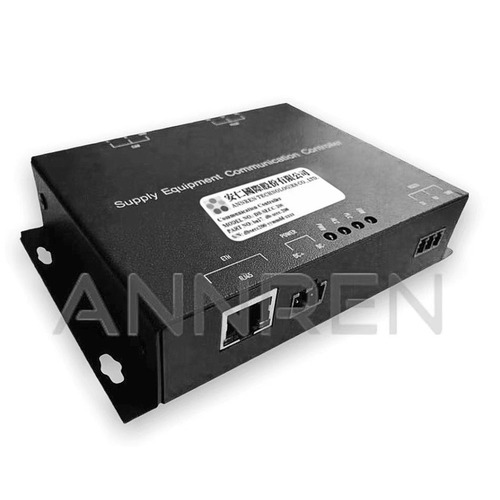

Supply Equipment Communication Controller (SECC)產品圖
Supply Equipment Communication Controller (SECC)

Model No.: DB-SECC-200

HomePlug Green PHY™ compatible QCA7000 Chip for control pilot communication

Supported Standards: ISO 15118 / DIN 70121 / GBT 27930

IEC61851-1

Ethernet (IEEE 802.3)

CAN2.0B

代碼: DB-SECC-200

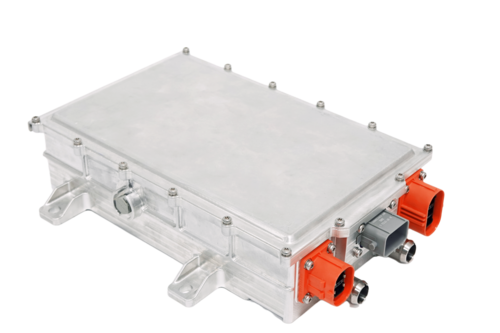

6.6KW On Board Battery Charger產品圖
6.6KW On Board Battery Charger

Model No.:6.6KW ON BOARD BATTERY CHARGER

Power:6.6KW

Input Voltage:90〜265V

Output Voltage:16-68VDC/25-99VDC/34-132VDC/50-198VDC/110-440VDC/170-650VDC

Output Current:80A/64A/46A/20A/12A

Efficiency:93%

代碼: AR-HK-J-H
OBC_11KW_Three-phase 304 ~ 456VAC (line-line voltage,three-phase four-wire)Single-phase 176 ~ 264VAC, 250~450VDC, Three-phase: 32A, 3.3KW single phase: 10A, 6.6KWsingle phase: 20A_Module產品圖
OBC_11KW_Three-phase 304 ~ 456VAC (line-line voltage,three-phase four-wire)Single-phase 176 ~ 264VAC, 250~450VDC, Three-phase: 32A, 3.3KW single phase: 10A, 6.6KWsingle phase: 20A_Module

Model No.:LWC11K-380S380-M

Power:11KW

Input Voltage:Three-phase 304 ~ 456VAC/Single phase 220 ± 15% VAC

Output Voltage:250~450VDC

Efficiency:95%

代碼: LWC11K-380S380-M
OBC_11KW_304~456VAC(three phrase), 250~450VDC, 32A_Liquid_Model No.:LWC11K-380S380-W產品圖
OBC_11KW_304~456VAC(three phrase), 250~450VDC, 32A_Liquid_Model No.:LWC11K-380S380-W

Model No.:LWC11K-380S380-W

Power:11KW

Input Voltage:304~456VAC/175~265VAC

Output Voltage:250~450VDC

Output Current:32A/20A

Efficiency:95%

代碼: LWC11K-380S380-W
OBC_11KW_90~264VAC,400~650VDC,50A_Module_Model No.:LWC11K-380S540-M產品圖
OBC_11KW_90~264VAC,400~650VDC,50A_Module_Model No.:LWC11K-380S540-M

Model No.:LWC11K-380S540-M

Power:11KW

Input Voltage:90~264VAC/50A

Output Voltage:400~650VDC

Efficiency:94%

代碼: LWC11K-380S540-M
OBC_11KW_304~456VAC,400~650VDC,23A_Liquid_Model No.:LWC11K-380S540-W產品圖
OBC_11KW_304~456VAC,400~650VDC,23A_Liquid_Model No.:LWC11K-380S540-W

Model No.:LWC11K-380S540-W

Power:11KW

Input Voltage:304~456VDC/176~264VAC

Output Voltage:400~650VDC

Output Current:23A/14A

Efficiency:95%

代碼: LWC11K-380S540-W
OBC_11KW_304~456VAC(three phrase), 450-750VDC, 20A_Liquid_Model No.:LWC11K-380S640-W產品圖
OBC_11KW_304~456VAC(three phrase), 450-750VDC, 20A_Liquid_Model No.:LWC11K-380S640-W

Charging Standard: IEC

Output Power:11KW

Input Voltage:3-phase 304~456VAC (L-L, 3-phase 4-lines) Single phase 176~264VAC

Output Voltage:450~750VDC

Cooling System:Liquid

Communication:CAN-BUS

代碼: LWC11K-380S640-W
OBC_13KW_85~265VAC_450-750VDC_24A_LIGUID_Model No.:LWC13K-220S640-W產品圖
OBC_13KW_85~265VAC_450-750VDC_24A_LIGUID_Model No.:LWC13K-220S640-W

Charging Standard: SAE

Output Power:13KW

Input Voltage:85~265VAC

Output Voltage:450~750VDC

Cooling System:Liquid

IP Rating:IP67

Communication:CAN-BUS

代碼: LWC13K-220S640-W
OBC_20KW_85~265VAC_450~750VDC_Liquid_Model No.:LWC20K-220S640-W產品圖
OBC_20KW_85~265VAC_450~750VDC_Liquid_Model No.:LWC20K-220S640-W

Model No.:LWC20K-220S640-W

Output Power:20KW

Input Voltage:85~265VAC

Output Voltage:450~750VDC

Cooling System:Liquid

IP Rating:IP67

Communication:CAN-BUS

代碼: LWC20K-220S640-W
22KW ON BOARD CHARGER LIGUID產品圖
22KW ON BOARD CHARGER LIGUID

Model No.:LWC22K-380S380-W

Power:22KW

Input Voltage:hree-phase 345~415VAC/single phase 220±15% VAC

Output Voltage:250~450VD

Output Current:Three phase: 56±2A, single phase: 20±2A

Efficiency:94%

代碼: LWC22K-380S380-W
22KW ON BOARD CHARGER LIGUID產品圖
22KW ON BOARD CHARGER LIGUID

Model No.:LWC22K-380S540-W

Power:22KW

Input Voltage:Three-phase 345~415VAC/single phase 220±15% VAC

Output Voltage:400~650VDC

Efficiency:94%

代碼: LWC22K-380S540-W
OBC_22KW_304~456VAC(three phrase), 450~750VDC, 40A_Liquid_Model No.:LWC22K-380S640-W產品圖
OBC_22KW_304~456VAC(three phrase), 450~750VDC, 40A_Liquid_Model No.:LWC22K-380S640-W

Charging Standard: IEC

Output Power:22KW

Input Voltage:Three-phase 304~456VAC (L-L, three-phase four-lines) Single phase 176~264VAC

Output Voltage:450~750VDC

Cooling System:Liquid

代碼: LWC22K-380S640-W
40KW ON BOARD CHARGER LIGUID產品圖
40KW ON BOARD CHARGER LIGUID

Model No.:LWC40K-380S380-W

Power:40KW

Input Voltage:304~456VAC(three phrase)/220±15%VAC

Output Voltage:250~450VDC

Efficiency:95%

代碼: LWC40K-380S380-W
