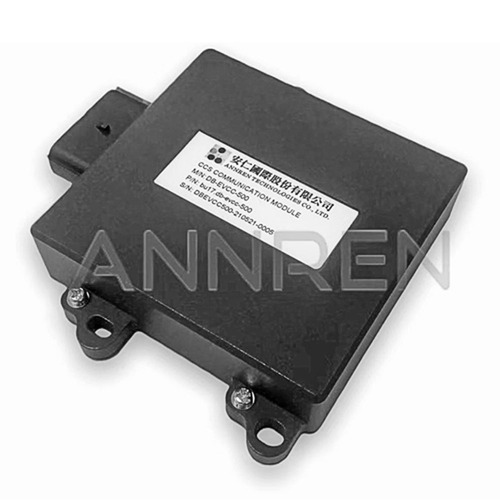

Electric Vehicle Communication Controller (EVCC)


Model No.: DB-EVCC-500

HomePlug Green PHY™ 1.1(IEEE 1901)

ISO/IEC 15118, DIN SPEC 70121

IEC61851-1, IEC 61851-23, IEC 61851-24

GB/T 27930-2015, GB/T 18487.1-2015

代碼 DB-EVCC-500





Download:Electric Vehicle Communication Controller(EVCC)


Features

Operation Voltage: +9V~ 32V DC
Operation Temperature: -40℃ ~ +85℃
Storage Temperature: -40℃ ~ +105℃
Operation Humidity: 0 ~ 90%RH
Housing Degree of Protection: IP67
Fire Rating: V-0
Dimensions (L*W*H): 147mm * 140mm * 31mm
Header and Connector: RECEPTACLE 0348302001 PLUG 0334722001


Technical Data

Communications
2 x CAN:
• 1 x CAN 2.0B, 250Kbps, Charging CAN
• 1 x CAN-FD, 500Kbps, UDS CAN
1 x Power Line Communication (Spectrum: 2~30MHz)

Wake-up Mechanisms
• Vehicle CAN
• Control Pilot
• Real Time Clock
• Reserved digital IO


Connector Interlocking
• Support 3-wire/4-wire Inlet Actuator
• Interlocking of the connector with the inlet during charging process
• Read-back channel to check if connector is properly plugged and locked

Power Dissipation
• Active: 145mA (Vin DC12V)
• Standby: 60uA


Supported Standards
1. HomePlug Green PHY™ 1.1(IEEE 1901)
2. ISO/IEC 15118, DIN SPEC 70121
3. IEC61851-1, IEC 61851-23, IEC 61851-24
4. GB/T 27930-2015, GB/T 18487.1-2015


TYPICAL SYSTEM WIRING SCENARIO
